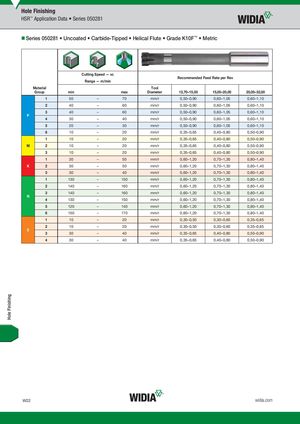

Series 050281 • Uncoated • Carbide-Tipped • Helical Flute • Grade K10F™ • Metric
| Cutting Speed — vc Range — m/min | Recommended F | eed Rate per Rev | ||||
| Material Group | min | max | Tool Diameter | 12,70–15,00 | 15,00–20,00 | 20,00–32,00 |
| 1 | 50 | – 70 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| 2 | 40 | – 60 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| P 3 | 40 | – 60 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| 4 | 30 | – 40 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| 5 | 20 | – 30 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| 6 | 10 | – 20 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 1 | 10 | – 20 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| M 2 | 10 | – 20 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 3 | 10 | – 20 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 1 | 30 | – 50 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| K 2 | 30 | – 50 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| 3 | 30 | – 40 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| 1 | 130 | – 150 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| 2 | 140 | – 160 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| N 3 | 140 | – 160 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| 4 | 130 | – 150 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| 5 | 120 | – 140 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| 6 | 150 | – 170 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| 1 | 10 | – 20 | mm/r | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| S 2 | 10 | – 20 | mm/r | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 3 | 30 | – 40 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 4 | 30 | – 40 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
