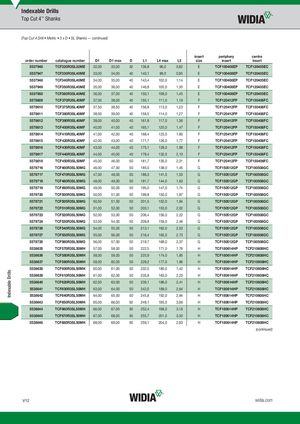

(Top Cut 4 Drill • Metric • 3 x D • SL Shanks — continued)
insert periphery centre
| order number | catalogue number | D1 | D1 max | D | L1 | L4 max | L5 | size | insert insert | |
| 5537946 | TCF320R3SL32ME | 32,00 | 33,00 | 32 | 136,8 | 96,0 | 0,82 | E | TCF100408EP | TCF120405EC |
| 5537947 | TCF330R3SL40ME | 33,00 | 34,00 | 40 | 140,1 | 99,0 | 0,95 | E | TCF100408EP | TCF120405EC |
| 5537948 | TCF340R3SL40ME | 34,00 | 35,00 | 40 | 143,4 | 102,0 | 1,14 | E | TCF100408EP | TCF120405EC |
| 5537949 | TCF350R3SL40ME | 35,00 | 36,00 | 40 | 146,8 | 105,0 | 1,30 | E | TCF100408EP | TCF120405EC |
| 5537950 | TCF360R3SL40ME | 36,00 | 37,00 | 40 | 150,1 | 108,0 | 1,45 | E | TCF100408EP | TCF120405EC |
| 5578609 | TCF370R3SL40MF | 37,00 | 38,00 | 40 | 155,1 | 111,0 | 1,19 | F | TCF120412FP | TCF150406FC |
| 5578610 | TCF375R3SL40MF | 37,50 | 38,50 | 40 | 156,8 | 113,0 | 1,23 | F | TCF120412FP | TCF150406FC |
| 5578611 | TCF380R3SL40MF | 38,00 | 39,00 | 40 | 158,5 | 114,0 | 1,27 | F | TCF120412FP | TCF150406FC |
| 5578612 | TCF390R3SL40MF | 39,00 | 40,00 | 40 | 161,8 | 117,0 | 1,36 | F | TCF120412FP | TCF150406FC |
| 5578613 | TCF400R3SL40MF | 40,00 | 41,00 | 40 | 165,1 | 120,0 | 1,47 | F | TCF120412FP | TCF150406FC |
| 5578614 | TCF410R3SL40MF | 41,00 | 42,00 | 40 | 168,4 | 123,0 | 1,60 | F | TCF120412FP | TCF150406FC |
| 5578615 | TCF420R3SL40MF | 42,00 | 43,00 | 40 | 171,7 | 126,0 | 1,77 | F | TCF120412FP | TCF150406FC |
| 5578616 | TCF430R3SL40MF | 43,00 | 44,00 | 40 | 175,1 | 129,0 | 1,99 | F | TCF120412FP | TCF150406FC |
| 5578617 | TCF440R3SL40MF | 44,00 | 45,00 | 40 | 178,4 | 132,0 | 2,10 | F | TCF120412FP | TCF150406FC |
| 5578618 | TCF450R3SL50MF | 45,00 | 46,00 | 50 | 181,7 | 135,0 | 2,21 | F | TCF120412FP | TCF150406FC |
| 5578716 | TCF460R3SL50MG | 46,00 | 47,00 | 50 | 185,0 | 138,0 | 1,45 | G | TCF150512GP | TCF180508GC |
| 5578717 | TCF470R3SL50MG | 47,00 | 48,00 | 50 | 188,3 | 141,0 | 1,53 | G | TCF150512GP | TCF180508GC |
| 5578718 | TCF480R3SL50MG | 48,00 | 49,00 | 50 | 191,7 | 144,0 | 1,63 | G | TCF150512GP | TCF180508GC |
| 5578719 | TCF490R3SL50MG | 49,00 | 50,00 | 50 | 195,0 | 147,0 | 1,74 | G | TCF150512GP | TCF180508GC |
| 5578720 | TCF500R3SL50MG | 50,00 | 51,00 | 50 | 199,8 | 150,0 | 1,87 | G | TCF150512GP | TCF180508GC |
| 5578721 | TCF505R3SL50MG | 50,50 | 51,50 | 50 | 201,5 | 152,0 | 1,94 | G | TCF150512GP | TCF180508GC |
| 5578722 | TCF510R3SL50MG | 51,00 | 52,00 | 50 | 203,1 | 153,0 | 2,02 | G | TCF150512GP | TCF180508GC |
| 5578723 | TCF520R3SL50MG | 52,00 | 53,00 | 50 | 206,4 | 156,0 | 2,22 | G | TCF150512GP | TCF180508GC |
| 5578724 | TCF530R3SL50MG | 53,00 | 54,00 | 50 | 209,8 | 159,0 | 2,46 | G | TCF150512GP | TCF180508GC |
| 5578726 | TCF540R3SL50MG | 54,00 | 55,00 | 50 | 213,1 | 162,0 | 2,53 | G | TCF150512GP | TCF180508GC |
| 5578727 | TCF550R3SL50MG | 55,00 | 56,00 | 50 | 216,4 | 165,0 | 2,73 | G | TCF150512GP | TCF180508GC |
| 5578728 | TCF560R3SL50MG | 56,00 | 57,00 | 50 | 219,7 | 168,0 | 2,37 | G | TCF150512GP | TCF180508GC |
| 5538635 | TCF570R3SL50MH | 57,00 | 58,00 | 50 | 222,5 | 171,0 | 1,76 | H | TCF180614HP | TCF210608HC |
| 5538636 | TCF580R3SL50MH | 58,00 | 59,00 | 50 | 225,9 | 174,0 | 1,85 | H | TCF180614HP | TCF210608HC |
| 5538637 | TCF590R3SL50MH | 59,00 | 60,00 | 50 | 229,2 | 177,0 | 1,96 | H | TCF180614HP | TCF210608HC |
| 5538638 | TCF600R3SL50MH | 60,00 | 61,00 | 50 | 232,5 | 180,0 | 1,42 | H | TCF180614HP | TCF210608HC |
| 5538639 | TCF610R3SL50MH | 61,00 | 62,00 | 50 | 235,8 | 183,0 | 2,23 | H | TCF180614HP | TCF210608HC |
| 5538640 | TCF620R3SL50MH | 62,00 | 63,00 | 50 | 239,1 | 186,0 | 2,41 | H | TCF180614HP | TCF210608HC |
| 5538641 | TCF630R3SL50MH | 63,00 | 64,00 | 50 | 242,5 | 189,0 | 2,64 | H | TCF180614HP | TCF210608HC |
| 5538642 | TCF640R3SL50MH | 64,00 | 65,00 | 50 | 245,8 | 192,0 | 2,94 | H | TCF180614HP | TCF210608HC |
| 5538643 | TCF650R3SL50MH | 65,00 | 66,00 | 50 | 249,1 | 195,0 | 3,06 | H | TCF180614HP | TCF210608HC |
| 5538644 | TCF660R3SL50MH | 66,00 | 67,00 | 50 | 252,4 | 198,0 | 3,18 | H | TCF180614HP | TCF210608HC |
| 5538645 | TCF670R3SL50MH | 67,00 | 68,00 | 50 | 255,7 | 201,0 | 3,30 | H | TCF180614HP | TCF210608HC |
| 5538646 | TCF680R3SL50MH | 68,00 | 69,00 | 50 | 259,1 | 204,0 | 2,93 | H | TCF180614HP | TCF210608HC |
(continued)
