For information on LS, see the table on page V13.

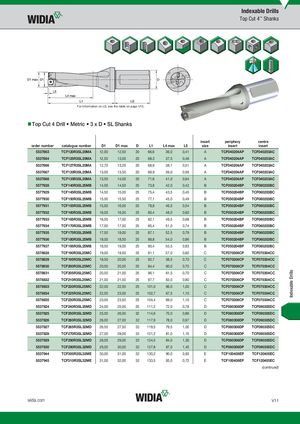

Top Cut 4 Drill • Metric • 3 x D • SL Shanks
insert periphery centre
| order number | catalogue number | D1 | D1 max | D | L1 | L4 max | L5 | size | insert insert | |
| 5537863 | TCF120R3SL20MA | 12,00 | 12,50 | 20 | 66,6 | 36,0 | 0,41 | A | TCF040204AP | TCF040203AC |
| 5537864 | TCF125R3SL20MA | 12,50 | 13,00 | 20 | 68,3 | 37,5 | 0,48 | A | TCF040204AP | TCF040203AC |
| 5537866 | TCF127R3SL20MA | 12,70 | 13,20 | 20 | 68,9 | 38,1 | 0,51 | A | TCF040204AP | TCF040203AC |
| 5537867 | TCF130R3SL20MA | 13,00 | 13,50 | 20 | 69,9 | 39,0 | 0,56 | A | TCF040204AP | TCF040203AC |
| 5537868 | TCF135R3SL20MA | 13,50 | 14,00 | 20 | 71,6 | 41,0 | 0,64 | A | TCF040204AP | TCF040203AC |
| 5577928 | TCF140R3SL25MB | 14,00 | 14,50 | 25 | 73,8 | 42,0 | 0,42 | B | TCF050204BP | TCF060203BC |
| 5577929 | TCF145R3SL25MB | 14,50 | 15,00 | 25 | 75,4 | 43,5 | 0,45 | B | TCF050204BP | TCF060203BC |
| 5577930 | TCF150R3SL25MB | 15,00 | 15,50 | 25 | 77,1 | 45,0 | 0,49 | B | TCF050204BP | TCF060203BC |
| 5577931 | TCF155R3SL25MB | 15,50 | 16,00 | 25 | 78,8 | 46,5 | 0,54 | B | TCF050204BP | TCF060203BC |
| 5577932 | TCF160R3SL25MB | 16,00 | 16,50 | 25 | 80,4 | 48,0 | 0,60 | B | TCF050204BP | TCF060203BC |
| 5577933 | TCF165R3SL25MB | 16,50 | 17,00 | 25 | 82,1 | 49,5 | 0,68 | B | TCF050204BP | TCF060203BC |
| 5577934 | TCF170R3SL25MB | 17,00 | 17,50 | 25 | 85,4 | 51,0 | 0,74 | B | TCF050204BP | TCF060203BC |
| 5577935 | TCF175R3SL25MB | 17,50 | 18,00 | 25 | 87,1 | 52,5 | 0,79 | B | TCF050204BP | TCF060203BC |
| 5577936 | TCF180R3SL25MB | 18,00 | 18,50 | 25 | 88,8 | 54,0 | 0,86 | B | TCF050204BP | TCF060203BC |
| 5577937 | TCF185R3SL25MB | 18,50 | 19,00 | 25 | 90,4 | 55,5 | 0,83 | B | TCF050204BP | TCF060203BC |
| 5578828 | TCF190R3SL25MC | 19,00 | 19,50 | 25 | 91,1 | 57,0 | 0,60 | C | TCF070306CP | TCF070304CC |
| 5578829 | TCF195R3SL25MC | 19,50 | 20,00 | 25 | 92,7 | 58,5 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578830 | TCF200R3SL25MC | 20,00 | 20,50 | 25 | 94,4 | 60,0 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578831 | TCF205R3SL25MC | 20,50 | 21,00 | 25 | 96,1 | 61,5 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578832 | TCF210R3SL25MC | 21,00 | 21,50 | 25 | 97,7 | 63,0 | 0,80 | C | TCF070306CP | TCF070304CC |
| 5578833 | TCF220R3SL25MC | 22,00 | 22,50 | 25 | 101,0 | 66,0 | 1,00 | C | TCF070306CP | TCF070304CC |
| 5578834 | TCF225R3SL25MC | 22,50 | 23,00 | 25 | 102,7 | 67,5 | 1,10 | C | TCF070306CP | TCF070304CC |
| 5578835 | TCF230R3SL25MC | 23,00 | 23,50 | 25 | 104,4 | 69,0 | 1,10 | C | TCF070306CP | TCF070304CC |
| 5537824 | TCF240R3SL25MD | 24,00 | 25,00 | 25 | 111,2 | 72,0 | 0,78 | D | TCF080308DP | TCF090305DC |
| 5537825 | TCF250R3SL32MD | 25,00 | 26,00 | 32 | 114,6 | 75,0 | 0,86 | D | TCF080308DP | TCF090305DC |
| 5537826 | TCF260R3SL32MD | 26,00 | 27,00 | 32 | 117,9 | 78,0 | 0,97 | D | TCF080308DP | TCF090305DC |
| 5537827 | TCF265R3SL32MD | 26,50 | 27,50 | 32 | 119,5 | 79,5 | 1,05 | D | TCF080308DP | TCF090305DC |
| 5537828 | TCF270R3SL32MD | 27,00 | 28,00 | 32 | 121,2 | 81,0 | 1,15 | D | TCF080308DP | TCF090305DC |
| 5537829 | TCF280R3SL32MD | 28,00 | 29,00 | 32 | 124,5 | 84,0 | 1,30 | D | TCF080308DP | TCF090305DC |
| 5537830 | TCF290R3SL32MD | 29,00 | 30,00 | 32 | 127,8 | 87,0 | 1,45 | D | TCF080308DP | TCF090305DC |
| 5537944 | TCF300R3SL32ME | 30,00 | 31,00 | 32 | 130,2 | 90,0 | 0,63 | E | TCF100408EP | TCF120405EC |
| 5537945 | TCF310R3SL32ME | 31,00 | 32,00 | 32 | 133,5 | 93,0 | 0,72 | E | TCF100408EP | TCF120405EC |
(continued)
