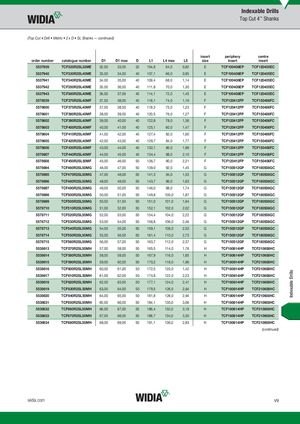

(Top Cut 4 Drill • Metric • 2 x D • SL Shanks — continued)
insert periphery centre
| order number | catalogue number | D1 | D1 max | D | L1 | L4 max | L5 | size | insert insert | |
| 5537939 | TCF320R2SL32ME | 32,00 | 33,00 | 32 | 104,8 | 64,0 | 0,82 | E | TCF100408EP | TCF120405EC |
| 5537940 | TCF330R2SL40ME | 33,00 | 34,00 | 40 | 107,1 | 66,0 | 0,95 | E | TCF100408EP | TCF120405EC |
| 5537941 | TCF340R2SL40ME | 34,00 | 35,00 | 40 | 109,4 | 68,0 | 1,14 | E | TCF100408EP | TCF120405EC |
| 5537942 | TCF350R2SL40ME | 35,00 | 36,00 | 40 | 111,8 | 70,0 | 1,30 | E | TCF100408EP | TCF120405EC |
| 5537943 | TCF360R2SL40ME | 36,00 | 37,00 | 40 | 114,1 | 72,0 | 1,45 | E | TCF100408EP | TCF120405EC |
| 5578539 | TCF370R2SL40MF | 37,00 | 38,00 | 40 | 118,1 | 74,0 | 1,19 | F | TCF120412FP | TCF150406FC |
| 5578600 | TCF375R2SL40MF | 37,50 | 38,50 | 40 | 119,3 | 75,0 | 1,23 | F | TCF120412FP | TCF150406FC |
| 5578601 | TCF380R2SL40MF | 38,00 | 39,00 | 40 | 120,5 | 76,0 | 1,27 | F | TCF120412FP | TCF150406FC |
| 5578602 | TCF390R2SL40MF | 39,00 | 40,00 | 40 | 122,8 | 78,0 | 1,36 | F | TCF120412FP | TCF150406FC |
| 5578603 | TCF400R2SL40MF | 40,00 | 41,00 | 40 | 125,1 | 80,0 | 1,47 | F | TCF120412FP | TCF150406FC |
| 5578604 | TCF410R2SL40MF | 41,00 | 42,00 | 40 | 127,4 | 82,0 | 1,60 | F | TCF120412FP | TCF150406FC |
| 5578605 | TCF420R2SL40MF | 42,00 | 43,00 | 40 | 129,7 | 84,0 | 1,77 | F | TCF120412FP | TCF150406FC |
| 5578606 | TCF430R2SL40MF | 43,00 | 44,00 | 40 | 132,1 | 86,0 | 1,99 | F | TCF120412FP | TCF150406FC |
| 5578607 | TCF440R2SL40MF | 44,00 | 45,00 | 40 | 134,4 | 88,0 | 2,10 | F | TCF120412FP | TCF150406FC |
| 5578608 | TCF450R2SL50MF | 45,00 | 46,00 | 50 | 136,7 | 90,0 | 2,21 | F | TCF120412FP | TCF150406FC |
| 5578694 | TCF460R2SL50MG | 46,00 | 47,00 | 50 | 139,0 | 92,0 | 1,45 | G | TCF150512GP | TCF180508GC |
| 5578695 | TCF470R2SL50MG | 47,00 | 48,00 | 50 | 141,3 | 94,0 | 1,53 | G | TCF150512GP | TCF180508GC |
| 5578696 | TCF480R2SL50MG | 48,00 | 49,00 | 50 | 143,7 | 96,0 | 1,63 | G | TCF150512GP | TCF180508GC |
| 5578697 | TCF490R2SL50MG | 49,00 | 50,00 | 50 | 146,0 | 98,0 | 1,74 | G | TCF150512GP | TCF180508GC |
| 5578698 | TCF500R2SL50MG | 50,00 | 51,00 | 50 | 149,8 | 100,0 | 1,87 | G | TCF150512GP | TCF180508GC |
| 5578699 | TCF505R2SL50MG | 50,50 | 51,50 | 50 | 151,0 | 101,0 | 1,94 | G | TCF150512GP | TCF180508GC |
| 5578710 | TCF510R2SL50MG | 51,00 | 52,00 | 50 | 152,1 | 102,0 | 2,02 | G | TCF150512GP | TCF180508GC |
| 5578711 | TCF520R2SL50MG | 52,00 | 53,00 | 50 | 154,4 | 104,0 | 2,22 | G | TCF150512GP | TCF180508GC |
| 5578712 | TCF530R2SL50MG | 53,00 | 54,00 | 50 | 156,8 | 106,0 | 2,46 | G | TCF150512GP | TCF180508GC |
| 5578713 | TCF540R2SL50MG | 54,00 | 55,00 | 50 | 159,1 | 108,0 | 2,53 | G | TCF150512GP | TCF180508GC |
| 5578714 | TCF550R2SL50MG | 55,00 | 56,00 | 50 | 161,4 | 110,0 | 2,73 | G | TCF150512GP | TCF180508GC |
| 5578715 | TCF560R2SL50MG | 56,00 | 57,00 | 50 | 163,7 | 112,0 | 2,37 | G | TCF150512GP | TCF180508GC |
| 5538613 | TCF570R2SL50MH | 57,00 | 58,00 | 50 | 165,5 | 114,0 | 1,76 | H | TCF180614HP | TCF210608HC |
| 5538614 | TCF580R2SL50MH | 58,00 | 59,00 | 50 | 167,9 | 116,0 | 1,85 | H | TCF180614HP | TCF210608HC |
| 5538615 | TCF590R2SL50MH | 59,00 | 60,00 | 50 | 170,2 | 118,0 | 1,96 | H | TCF180614HP | TCF210608HC |
| 5538616 | TCF600R2SL50MH | 60,00 | 61,00 | 50 | 172,5 | 120,0 | 1,42 | H | TCF180614HP | TCF210608HC |
| 5538617 | TCF610R2SL50MH | 61,00 | 62,00 | 50 | 174,8 | 122,0 | 2,23 | H | TCF180614HP | TCF210608HC |
| 5538618 | TCF620R2SL50MH | 62,00 | 63,00 | 50 | 177,1 | 124,0 | 2,41 | H | TCF180614HP | TCF210608HC |
| 5538619 | TCF630R2SL50MH | 63,00 | 64,00 | 50 | 179,5 | 126,0 | 2,64 | H | TCF180614HP | TCF210608HC |
| 5538630 | TCF640R2SL50MH | 64,00 | 65,00 | 50 | 181,8 | 128,0 | 2,94 | H | TCF180614HP | TCF210608HC |
| 5538631 | TCF650R2SL50MH | 65,00 | 66,00 | 50 | 184,1 | 130,0 | 3,06 | H | TCF180614HP | TCF210608HC |
| 5538632 | TCF660R2SL50MH | 66,00 | 67,00 | 50 | 186,4 | 132,0 | 3,18 | H | TCF180614HP | TCF210608HC |
| 5538633 | TCF670R2SL50MH | 67,00 | 68,00 | 50 | 188,7 | 134,0 | 3,30 | H | TCF180614HP | TCF210608HC |
| 5538634 | TCF680R2SL50MH | 68,00 | 69,00 | 50 | 191,1 | 136,0 | 2,93 | H | TCF180614HP | TCF210608HC |
(continued)
