For information on LS, see the table on page V10.

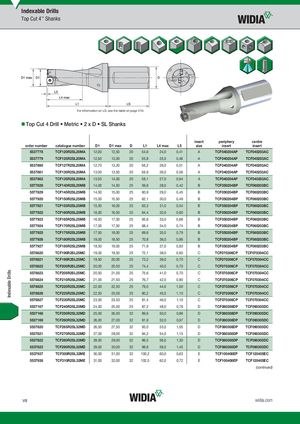

Top Cut 4 Drill • Metric • 2 x D • SL Shanks
insert periphery centre
| order number | catalogue number | D1 | D1 max | D | L1 | L4 max | L5 | size | insert insert | |
| 5537778 | TCF120R2SL20MA | 12,00 | 12,50 | 20 | 54,6 | 24,0 | 0,41 | A | TCF040204AP | TCF040203AC |
| 5537779 | TCF125R2SL20MA | 12,50 | 13,00 | 20 | 55,8 | 25,0 | 0,48 | A | TCF040204AP | TCF040203AC |
| 5537860 | TCF127R2SL20MA | 12,70 | 13,20 | 20 | 56,2 | 26,0 | 0,51 | A | TCF040204AP | TCF040203AC |
| 5537861 | TCF130R2SL20MA | 13,00 | 13,50 | 20 | 56,9 | 26,0 | 0,56 | A | TCF040204AP | TCF040203AC |
| 5537862 | TCF135R2SL20MA | 13,50 | 14,00 | 20 | 58,1 | 27,0 | 0,64 | A | TCF040204AP | TCF040203AC |
| 5577828 | TCF140R2SL25MB | 14,00 | 14,50 | 25 | 59,8 | 28,0 | 0,42 | B | TCF050204BP | TCF060203BC |
| 5577829 | TCF145R2SL25MB | 14,50 | 15,00 | 25 | 60,9 | 29,0 | 0,45 | B | TCF050204BP | TCF060203BC |
| 5577920 | TCF150R2SL25MB | 15,00 | 15,50 | 25 | 62,1 | 30,0 | 0,49 | B | TCF050204BP | TCF060203BC |
| 5577921 | TCF155R2SL25MB | 15,50 | 16,00 | 25 | 63,3 | 31,0 | 0,54 | B | TCF050204BP | TCF060203BC |
| 5577922 | TCF160R2SL25MB | 16,00 | 16,50 | 25 | 64,4 | 32,0 | 0,60 | B | TCF050204BP | TCF060203BC |
| 5577923 | TCF165R2SL25MB | 16,50 | 17,00 | 25 | 65,6 | 33,0 | 0,68 | B | TCF050204BP | TCF060203BC |
| 5577924 | TCF170R2SL25MB | 17,00 | 17,50 | 25 | 68,4 | 34,0 | 0,74 | B | TCF050204BP | TCF060203BC |
| 5577925 | TCF175R2SL25MB | 17,50 | 18,00 | 25 | 69,6 | 35,0 | 0,79 | B | TCF050204BP | TCF060203BC |
| 5577926 | TCF180R2SL25MB | 18,00 | 18,50 | 25 | 70,8 | 36,0 | 0,86 | B | TCF050204BP | TCF060203BC |
| 5577927 | TCF185R2SL25MB | 18,50 | 19,00 | 25 | 71,9 | 37,0 | 0,83 | B | TCF050204BP | TCF060203BC |
| 5578820 | TCF190R2SL25MC | 19,00 | 19,50 | 25 | 72,1 | 38,0 | 0,60 | C | TCF070306CP | TCF070304CC |
| 5578821 | TCF195R2SL25MC | 19,50 | 20,00 | 25 | 73,2 | 39,0 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578822 | TCF200R2SL25MC | 20,00 | 20,50 | 25 | 74,4 | 40,0 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578823 | TCF205R2SL25MC | 20,50 | 21,00 | 25 | 75,6 | 41,0 | 0,70 | C | TCF070306CP | TCF070304CC |
| 5578824 | TCF210R2SL25MC | 21,00 | 21,50 | 25 | 76,7 | 42,0 | 0,80 | C | TCF070306CP | TCF070304CC |
| 5578825 | TCF220R2SL25MC | 22,00 | 22,50 | 25 | 79,0 | 44,0 | 1,00 | C | TCF070306CP | TCF070304CC |
| 5578826 | TCF225R2SL25MC | 22,50 | 23,00 | 25 | 80,2 | 45,0 | 1,10 | C | TCF070306CP | TCF070304CC |
| 5578827 | TCF230R2SL25MC | 23,00 | 23,50 | 25 | 81,4 | 46,0 | 1,10 | C | TCF070306CP | TCF070304CC |
| 5537167 | TCF240R2SL25MD | 24,00 | 25,00 | 25 | 87,2 | 48,0 | 0,78 | D | TCF080308DP | TCF090305DC |
| 5537168 | TCF250R2SL32MD | 25,00 | 26,00 | 32 | 89,6 | 50,0 | 0,86 | D | TCF080308DP | TCF090305DC |
| 5537169 | TCF260R2SL32MD | 26,00 | 27,00 | 32 | 91,9 | 52,0 | 0,97 | D | TCF080308DP | TCF090305DC |
| 5537820 | TCF265R2SL32MD | 26,50 | 27,50 | 32 | 93,0 | 53,0 | 1,05 | D | TCF080308DP | TCF090305DC |
| 5537821 | TCF270R2SL32MD | 27,00 | 28,00 | 32 | 94,2 | 54,0 | 1,15 | D | TCF080308DP | TCF090305DC |
| 5537822 | TCF280R2SL32MD | 28,00 | 29,00 | 32 | 96,5 | 56,0 | 1,30 | D | TCF080308DP | TCF090305DC |
| 5537823 | TCF290R2SL32MD | 29,00 | 30,00 | 32 | 98,8 | 58,0 | 1,45 | D | TCF080308DP | TCF090305DC |
| 5537937 | TCF300R2SL32ME | 30,00 | 31,00 | 32 | 100,2 | 60,0 | 0,63 | E | TCF100408EP | TCF120405EC |
| 5537938 | TCF310R2SL32ME | 31,00 | 32,00 | 32 | 102,5 | 62,0 | 0,72 | E | TCF100408EP | TCF120405EC |
(continued)
