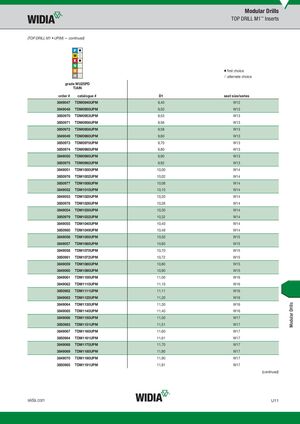

(TOP DRILL M1 • UP(M) — continued)
first choice alternate choice grade WU25PDK20FTiAlN TiAlN
| order # catalogue # | D1 | seat size/series |
| 3849047 TDM0940UPM | 9,40 | W12 |
| 3849048 TDM0950UPM | 9,50 | W13 |
| 3850970 TDM0953UPM | 9,53 | W13 |
| 3850971 TDM0956UPM | 9,56 | W13 |
| 3850972 TDM0958UPM | 9,58 | W13 |
| 3849049 TDM0960UPM | 9,60 | W13 |
| 3850973 TDM0970UPM | 9,70 | W13 |
| 3850974 TDM0980UPM | 9,80 | W13 |
| 3849050 TDM0990UPM | 9,90 | W13 |
| 3850975 TDM0992UPM | 9,92 | W13 |
| 3849051 TDM1000UPM | 10,00 | W14 |
| 3850976 TDM1002UPM | 10,02 | W14 |
| 3850977 TDM1008UPM | 10,08 | W14 |
| 3849052 TDM1010UPM | 10,10 | W14 |
| 3849053 TDM1020UPM | 10,20 | W14 |
| 3850978 TDM1026UPM | 10,26 | W14 |
| 3849054 TDM1030UPM | 10,30 | W14 |
| 3850979 TDM1032UPM | 10,32 | W14 |
| 3849055 TDM1040UPM | 10,40 | W14 |
| 3850980 TDM1049UPM | 10,49 | W14 |
| 3849056 TDM1050UPM | 10,50 | W15 |
| 3849057 TDM1060UPM | 10,60 | W15 |
| 3849058 TDM1070UPM | 10,70 | W15 |
| 3850981 TDM1072UPM | 10,72 | W15 |
| 3849059 TDM1080UPM | 10,80 | W15 |
| 3849060 TDM1090UPM | 10,90 | W15 |
| 3849061 TDM1100UPM | 11,00 | W16 |
| 3849062 TDM1110UPM | 11,10 | W16 |
| 3850982 TDM1111UPM | 11,11 | W16 |
| 3849063 TDM1120UPM | 11,20 | W16 |
| 3849064 TDM1130UPM | 11,30 | W16 |
| 3849065 TDM1140UPM | 11,40 | W16 |
| 3849066 TDM1150UPM | 11,50 | W17 |
| 3850983 TDM1151UPM | 11,51 | W17 |
| 3849067 TDM1160UPM | 11,60 | W17 |
| 3850984 TDM1161UPM | 11,61 | W17 |
| 3849068 TDM1170UPM | 11,70 | W17 |
| 3849069 TDM1180UPM | 11,80 | W17 |
| 3849070 TDM1190UPM | 11,90 | W17 |
| 3850985 TDM1191UPM | 11,91 | W17 |
(continued)
