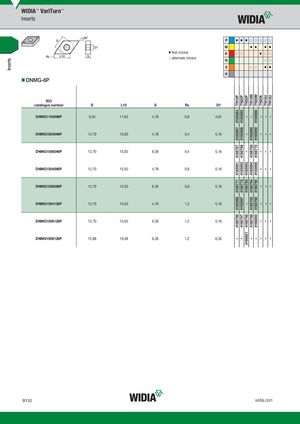

WIDIA™ VariTurn™ Inserts P M first choice K alternate choice Inserts N S H DNMG-6P TN15M TN30M TN10U TN15U TN20K TN10P TN20P TN30P ISO catalogue number D L10 S R¡ D1 4165984 4165985 4165986 DNMG1104086P 9,53 11,63 4,76 0,8 3,81 – – – – – 4165987 4165988 4165989 4165990 DNMG1504046P 12,70 15,50 4,76 0,4 5,16 – – – – 4166767 4166768 4166769 4166770 DNMG1506046P 12,70 15,50 6,35 0,4 5,16 – – – – 4165991 4165992 4165993 4165994 4165995 DNMG1504086P 12,70 15,50 4,76 0,8 5,16 – – – 4166771 4166772 4166793 4166794 4166795 DNMG1506086P 12,70 15,50 6,35 0,8 5,16 – – – 4165996 4165997 4166765 4166766 DNMG1504126P 12,70 15,50 4,76 1,2 5,16 – – – – 4166796 4166797 4166798 4166799 4166800 DNMG1506126P 12,70 15,50 6,35 1,2 5,16 – – – 4166801 DNMG1906126P 15,88 19,38 6,35 1,2 6,35 – – – – – – – B132 widia.com L V i WID M 16 T i I WID_Master16_Turning_Inserts_B132_B133_Metric_REBRAND.indd B132 132 B133 M i REBRAND O b 15 2015 9 39 AM 10/30/15 2:51 PM
