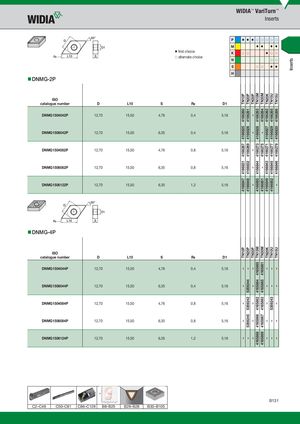

WIDIA™ VariTurn™ Inserts P         M      first choice K       alternate choice Inserts N   S     H „ DNMG-2P TN15M TN30M TN10U TN15U TN20K TN10P TN20P TN30P ISO catalogue number D L10 S R¡ D1 4166260 4166261 4166263 4166264 4166262 4166265 4166266 DNMG1504042P 12,70 15,50 4,76 0,4 5,16 – 4166825 4166826 4166828 4166827 4166829 4166830 DNMG1506042P 12,70 15,50 6,35 0,4 5,16 – – 4166267 4166269 4166273 4166275 4166271 4166277 4166279 DNMG1504082P 12,70 15,50 4,76 0,8 5,16 – 4166831 4166832 4166844 4166843 4166845 4166846 DNMG1506082P 12,70 15,50 6,35 0,8 5,16 – – 4166847 4166848 4166850 4166851 4166849 4166852 DNMG1506122P 12,70 15,50 6,35 1,2 5,16 – – „ DNMG-4P TN15M TN30M TN10U TN15U TN20K TN10P TN20P ISO TN30P catalogue number D L10 S R¡ D1 4165860 4165861 DNMG1504044P 12,70 15,50 4,76 0,4 5,16 – – – – – – 5359244 4165864 4165865 DNMG1506044P 12,70 15,50 6,35 0,4 5,16 – – – – – 5359242 4165862 4165863 5359243 DNMG1504084P 12,70 15,50 4,76 0,8 5,16 – – – – 5359245 4165866 4165867 DNMG1506084P 12,70 15,50 6,35 0,8 5,16 – – – – – 4165868 4165869 DNMG1506124P 12,70 15,50 6,35 1,2 5,16 – – – – – – B131 C2–C49 C50–C81 C86–C129 B8–B25 B26–B28 B30–B105 WID_Master16_Turning_Inserts_B130_B131_Metric_REBRAND.indd 131 L V i WID M 16 T i I B130 B131 M i REBRANDO b 1520159 10/30/15 39AM 2:51 PM
