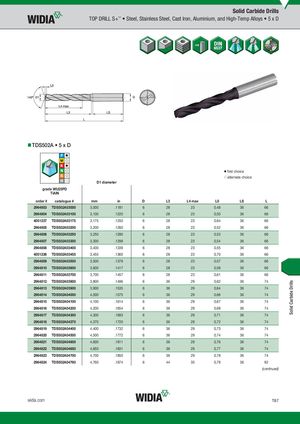

TDS502A • 5 x D
first choice alternate choice D1 diameter
| WU25PD grade WU25PD TiAlN | D1 dia | meter | ||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L |
| 2964803 TDS502A03000 | 3,000 | .1181 | 6 | 28 | 23 | 0,48 | 36 | 66 |
| 2964804 TDS502A03100 | 3,100 | .1220 | 6 | 28 | 23 | 0,50 | 36 | 66 |
| 4051237 TDS502A03175 | 3,175 | .1250 | 6 | 28 | 23 | 0,64 | 36 | 66 |
| 2964805 TDS502A03200 | 3,200 | .1260 | 6 | 28 | 23 | 0,52 | 36 | 66 |
| 2964806 TDS502A03250 | 3,250 | .1280 | 6 | 28 | 23 | 0,53 | 36 | 66 |
| 2964807 TDS502A03300 | 3,300 | .1299 | 6 | 28 | 23 | 0,54 | 36 | 66 |
| 2964808 TDS502A03400 | 3,400 | .1339 | 6 | 28 | 23 | 0,55 | 36 | 66 |
| 4051236 TDS502A03455 | 3,455 | .1360 | 6 | 28 | 23 | 0,70 | 36 | 66 |
| 2964809 TDS502A03500 | 3,500 | .1378 | 6 | 28 | 23 | 0,57 | 36 | 66 |
| 2964810 TDS502A03600 | 3,600 | .1417 | 6 | 28 | 23 | 0,59 | 36 | 66 |
| 2964811 TDS502A03700 | 3,700 | .1457 | 6 | 28 | 23 | 0,61 | 36 | 66 |
| 2964812 TDS502A03800 | 3,800 | .1496 | 6 | 36 | 29 | 0,62 | 36 | 74 |
| 2964813 TDS502A03900 | 3,900 | .1535 | 6 | 36 | 29 | 0,64 | 36 | 74 |
| 2964814 TDS502A04000 | 4,000 | .1575 | 6 | 36 | 29 | 0,66 | 36 | 74 |
| 2964815 TDS502A04100 | 4,100 | .1614 | 6 | 36 | 29 | 0,67 | 36 | 74 |
| 2964816 TDS502A04200 | 4,200 | .1654 | 6 | 36 | 29 | 0,69 | 36 | 74 |
| 2964817 TDS502A04300 | 4,300 | .1693 | 6 | 36 | 29 | 0,71 | 36 | 74 |
| 2964818 TDS502A04370 | 4,370 | .1720 | 6 | 36 | 29 | 0,72 | 36 | 74 |
| 2964819 TDS502A04400 | 4,400 | .1732 | 6 | 36 | 29 | 0,73 | 36 | 74 |
| 2964820 TDS502A04500 | 4,500 | .1772 | 6 | 36 | 29 | 0,74 | 36 | 74 |
| 2964821 TDS502A04600 | 4,600 | .1811 | 6 | 36 | 29 | 0,76 | 36 | 74 |
| 2964822 TDS502A04650 | 4,650 | .1831 | 6 | 36 | 29 | 0,77 | 36 | 74 |
| 2964823 TDS502A04700 | 4,700 | .1850 | 6 | 36 | 29 | 0,78 | 36 | 74 |
| 2964824 TDS502A04760 | 4,760 | .1874 | 6 | 44 | 35 | 0,79 | 36 | 82 |
