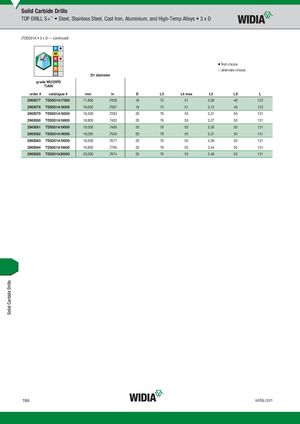

(TDS501A • 3 x D — continued)
first choice
| WU25PD grade WU25PD TiAlN | D1 dia | meter | ||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L |
| 2965077 TDS501A17800 | 17,800 | .7008 | 18 | 73 | 51 | 3,09 | 48 | 123 |
| 2965078 TDS501A18000 | 18,000 | .7087 | 18 | 73 | 51 | 3,12 | 48 | 123 |
| 2965079 TDS501A18500 | 18,500 | .7283 | 20 | 79 | 55 | 3,21 | 50 | 131 |
| 2965080 TDS501A18800 | 18,800 | .7402 | 20 | 79 | 55 | 3,27 | 50 | 131 |
| 2965081 TDS501A19000 | 19,000 | .7480 | 20 | 79 | 55 | 3,30 | 50 | 131 |
| 2965082 TDS501A19050 | 19,050 | .7500 | 20 | 79 | 55 | 3,31 | 50 | 131 |
| 2965083 TDS501A19500 | 19,500 | .7677 | 20 | 79 | 55 | 3,39 | 50 | 131 |
| 2965084 TDS501A19800 | 19,800 | .7795 | 20 | 79 | 55 | 3,44 | 50 | 131 |
| 2965085 TDS501A20000 | 20,000 | .7874 | 20 | 79 | 55 | 3,48 | 50 | 131 |
