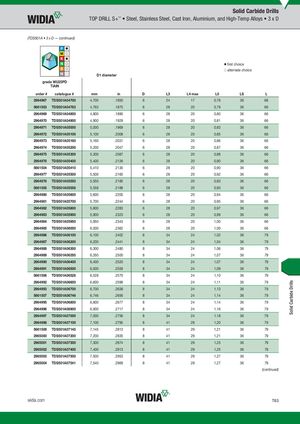

(TDS501A • 3 x D — continued)
first choice
| WU25PD grade WU25PD TiAlN | D1 dia | meter | ||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L |
| 2964967 TDS501A04700 | 4,700 | .1850 | 6 | 24 | 17 | 0,78 | 36 | 66 |
| 5661503 TDS501A04763 | 4,763 | .1875 | 6 | 28 | 20 | 0,79 | 36 | 66 |
| 2964969 TDS501A04800 | 4,800 | .1890 | 6 | 28 | 20 | 0,80 | 36 | 66 |
| 2964970 TDS501A04900 | 4,900 | .1929 | 6 | 28 | 20 | 0,81 | 36 | 66 |
| 2964971 TDS501A05000 | 5,000 | .1969 | 6 | 28 | 20 | 0,83 | 36 | 66 |
| 2964972 TDS501A05100 | 5,100 | .2008 | 6 | 28 | 20 | 0,85 | 36 | 66 |
| 2964973 TDS501A05160 | 5,160 | .2031 | 6 | 28 | 20 | 0,86 | 36 | 66 |
| 2964974 TDS501A05200 | 5,200 | .2047 | 6 | 28 | 20 | 0,87 | 36 | 66 |
| 2964975 TDS501A05300 | 5,300 | .2087 | 6 | 28 | 20 | 0,88 | 36 | 66 |
| 2964976 TDS501A05400 | 5,400 | .2126 | 6 | 28 | 20 | 0,90 | 36 | 66 |
| 5661504 TDS501A05410 | 5,410 | .2130 | 6 | 28 | 20 | 0,90 | 36 | 66 |
| 2964977 TDS501A05500 | 5,500 | .2165 | 6 | 28 | 20 | 0,92 | 36 | 66 |
| 2964978 TDS501A05550 | 5,550 | .2185 | 6 | 28 | 20 | 0,93 | 36 | 66 |
| 5661505 TDS501A05558 | 5,558 | .2188 | 6 | 28 | 20 | 0,93 | 36 | 66 |
| 2964980 TDS501A05600 | 5,600 | .2205 | 6 | 28 | 20 | 0,94 | 36 | 66 |
| 2964981 TDS501A05700 | 5,700 | .2244 | 6 | 28 | 20 | 0,95 | 36 | 66 |
| 2964982 TDS501A05800 | 5,800 | .2283 | 6 | 28 | 20 | 0,97 | 36 | 66 |
| 2964983 TDS501A05900 | 5,900 | .2323 | 6 | 28 | 20 | 0,99 | 36 | 66 |
| 2964984 TDS501A05950 | 5,950 | .2343 | 6 | 28 | 20 | 1,00 | 36 | 66 |
| 2964985 TDS501A06000 | 6,000 | .2362 | 6 | 28 | 20 | 1,00 | 36 | 66 |
| 2964986 TDS501A06100 | 6,100 | .2402 | 8 | 34 | 24 | 1,02 | 36 | 79 |
| 2964987 TDS501A06200 | 6,200 | .2441 | 8 | 34 | 24 | 1,04 | 36 | 79 |
| 2964988 TDS501A06300 | 6,300 | .2480 | 8 | 34 | 24 | 1,06 | 36 | 79 |
| 2964989 TDS501A06350 | 6,350 | .2500 | 8 | 34 | 24 | 1,07 | 36 | 79 |
| 2964990 TDS501A06400 | 6,400 | .2520 | 8 | 34 | 24 | 1,07 | 36 | 79 |
| 2964991 TDS501A06500 | 6,500 | .2559 | 8 | 34 | 24 | 1,09 | 36 | 79 |
| 5661506 TDS501A06528 | 6,528 | .2570 | 8 | 34 | 24 | 1,10 | 36 | 79 |
| 2964992 TDS501A06600 | 6,600 | .2598 | 8 | 34 | 24 | 1,11 | 36 | 79 |
| 2964993 TDS501A06700 | 6,700 | .2638 | 8 | 34 | 24 | 1,13 | 36 | 79 |
| 5661507 TDS501A06746 | 6,746 | .2656 | 8 | 34 | 24 | 1,14 | 36 | 79 |
| 2964995 TDS501A06800 | 6,800 | .2677 | 8 | 34 | 24 | 1,14 | 36 | 79 |
| 2964996 TDS501A06900 | 6,900 | .2717 | 8 | 34 | 24 | 1,16 | 36 | 79 |
| 2964997 TDS501A07000 | 7,000 | .2756 | 8 | 34 | 24 | 1,18 | 36 | 79 |
| 2964998 TDS501A07100 | 7,100 | .2795 | 8 | 41 | 29 | 1,20 | 36 | 79 |
| 5661509 TDS501A07145 | 7,145 | .2813 | 8 | 41 | 29 | 1,21 | 36 | 79 |
| 2965000 TDS501A07200 | 7,200 | .2835 | 8 | 41 | 29 | 1,21 | 36 | 79 |
| 2965001 TDS501A07300 | 7,300 | .2874 | 8 | 41 | 29 | 1,23 | 36 | 79 |
| 2965002 TDS501A07400 | 7,400 | .2913 | 8 | 41 | 29 | 1,25 | 36 | 79 |
| 2965003 TDS501A07500 | 7,500 | .2953 | 8 | 41 | 29 | 1,27 | 36 | 79 |
| 2965004 TDS501A07541 | 7,540 | .2969 | 8 | 41 | 29 | 1,27 | 36 | 79 |
| (continued) |
