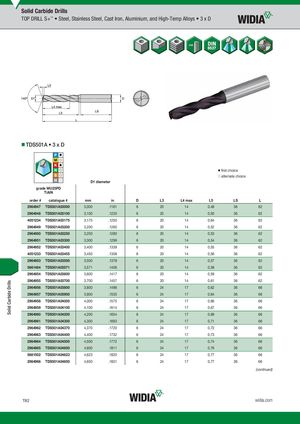

TDS501A • 3 x D
first choice alternate choice D1 diameter
| WU25PD grade WU25PD TiAlN | D1 dia | meter | ||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L |
| 2964947 TDS501A03000 | 3,000 | .1181 | 6 | 20 | 14 | 0,48 | 36 | 62 |
| 2964948 TDS501A03100 | 3,100 | .1220 | 6 | 20 | 14 | 0,50 | 36 | 62 |
| 4051234 TDS501A03175 | 3,175 | .1250 | 6 | 20 | 14 | 0,64 | 36 | 62 |
| 2964949 TDS501A03200 | 3,200 | .1260 | 6 | 20 | 14 | 0,52 | 36 | 62 |
| 2964950 TDS501A03250 | 3,250 | .1280 | 6 | 20 | 14 | 0,53 | 36 | 62 |
| 2964951 TDS501A03300 | 3,300 | .1299 | 6 | 20 | 14 | 0,54 | 36 | 62 |
| 2964952 TDS501A03400 | 3,400 | .1339 | 6 | 20 | 14 | 0,55 | 36 | 62 |
| 4051233 TDS501A03455 | 3,450 | .1358 | 6 | 20 | 14 | 0,56 | 36 | 62 |
| 2964953 TDS501A03500 | 3,500 | .1378 | 6 | 20 | 14 | 0,57 | 36 | 62 |
| 5661464 TDS501A03571 | 3,571 | .1406 | 6 | 20 | 14 | 0,58 | 36 | 62 |
| 2964954 TDS501A03600 | 3,600 | .1417 | 6 | 20 | 14 | 0,59 | 36 | 62 |
| 2964955 TDS501A03700 | 3,700 | .1457 | 6 | 20 | 14 | 0,61 | 36 | 62 |
| 2964956 TDS501A03800 | 3,800 | .1496 | 6 | 24 | 17 | 0,62 | 36 | 66 |
| 2964957 TDS501A03900 | 3,900 | .1535 | 6 | 24 | 17 | 0,64 | 36 | 66 |
| 2964958 TDS501A04000 | 4,000 | .1575 | 6 | 24 | 17 | 0,66 | 36 | 66 |
| 2964959 TDS501A04100 | 4,100 | .1614 | 6 | 24 | 17 | 0,67 | 36 | 66 |
| 2964960 TDS501A04200 | 4,200 | .1654 | 6 | 24 | 17 | 0,69 | 36 | 66 |
| 2964961 TDS501A04300 | 4,300 | .1693 | 6 | 24 | 17 | 0,71 | 36 | 66 |
| 2964962 TDS501A04370 | 4,370 | .1720 | 6 | 24 | 17 | 0,72 | 36 | 66 |
| 2964963 TDS501A04400 | 4,400 | .1732 | 6 | 24 | 17 | 0,73 | 36 | 66 |
| 2964964 TDS501A04500 | 4,500 | .1772 | 6 | 24 | 17 | 0,74 | 36 | 66 |
| 2964965 TDS501A04600 | 4,600 | .1811 | 6 | 24 | 17 | 0,76 | 36 | 66 |
| 5661502 TDS501A04623 | 4,623 | .1820 | 6 | 24 | 17 | 0,77 | 36 | 66 |
| 2964966 TDS501A04650 | 4,650 | .1831 | 6 | 24 | 17 | 0,77 | 36 | 66 |
