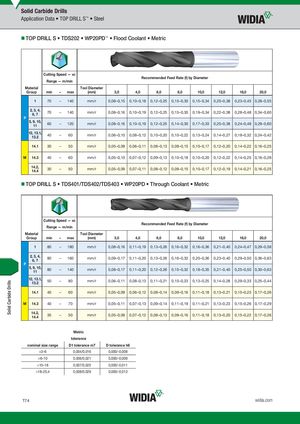

Application Data • TOP DRILL S™ • Steel
- TOP DRILL S • TDS202 • WP20PD™ • Flood Coolant • Metric
| Cutting Rang | Spee e — | d — vc m/min | Rec | ommended F | eed Rate (f) b | y Diameter | ||||||
| Material | Tool Diameter | |||||||||||
| Group | min | – | max | (mm) | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| 1 | 70 | – | 140 | mm/r | 0,08–0,15 | 0,10–0,18 | 0,12–0,25 | 0,15–0,30 | 0,15–0,34 | 0,20–0,38 | 0,23–0,45 | 0,28–0,55 |
| P 2, 3, 4, 6, 7 | 70 | – | 140 | mm/r | 0,08–0,16 | 0,10–0,19 | 0,12–0,25 | 0,15–0,30 | 0,19–0,34 | 0,22–0,38 | 0,28–0,48 | 0,34–0,60 |
| 5, 9, 10, 11 | 60 | – | 120 | mm/r | 0,08–0,16 | 0,10–0,19 | 0,12–0,25 | 0,14–0,30 | 0,17–0,33 | 0,20–0,38 | 0,24–0,48 | 0,29–0,60 |
| 12, 13.1, 13.2 | 40 | – | 60 | mm/r | 0,06–0,10 | 0,08–0,12 | 0,10–0,20 | 0,10–0,22 | 0,13–0,24 | 0,14–0,27 | 0,18–0,32 | 0,24–0,42 |
| 14.1 | 30 | – | 50 | mm/r | 0,05–0,09 | 0,06–0,11 | 0,08–0,13 | 0,09–0,15 | 0,10–0,17 | 0,12–0,20 | 0,14–0,22 | 0,16–0,25 |
| M 14.3 | 40 | – | 60 | mm/r | 0,05–0,10 | 0,07–0,12 | 0,09–0,13 | 0,10–0,18 | 0,10–0,20 | 0,12–0,22 | 0,14–0,25 | 0,16–0,28 |
| 14.2, 14.4 | 30 | – | 50 | mm/r | 0,05–0,09 | 0,07–0,11 | 0,08–0,12 | 0,09–0,15 | 0,10–0,17 | 0,12–0,19 | 0,14–0,21 | 0,16–0,25 |
- TOP DRILL S • TDS401/TDS402/TDS403 • WP20PD • Through Coolant • Metric
Cutting Speed — vc Recommended Feed Rate (f) by Diameter
| Material | Cutting Rang | Spee e — | d — vc m/min | Tool Diameter | Rec | ommended F | eed Rate (f) b | y Diameter | ||||
| Group | min | – | max | (mm) | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| 1 | 80 | – | 180 | mm/r | 0,08–0,16 | 0,11–0,19 | 0,13–0,26 | 0,16–0,32 | 0,16–0,36 | 0,21–0,40 | 0,24–0,47 | 0,29–0,58 |
| P 2, 3, 4, 6, 7 | 80 | – | 160 | mm/r | 0,09–0,17 | 0,11–0,20 | 0,13–0,26 | 0,16–0,32 | 0,20–0,36 | 0,23–0,40 | 0,29–0,50 | 0,36–0,63 |
| 5, 9, 10, 11 | 80 | – | 140 | mm/r | 0,08–0,17 | 0,11–0,20 | 0,12–0,26 | 0,15–0,32 | 0,18–0,35 | 0,21–0,40 | 0,25–0,50 | 0,30–0,63 |
| 12, 13.1, 13.2 | 50 | – | 80 | mm/r | 0,06–0,11 | 0,08–0,13 | 0,11–0,21 | 0,10–0,23 | 0,13–0,25 | 0,14–0,28 | 0,29–0,33 | 0,25–0,44 |
| 14.1 | 40 | – | 60 | mm/r | 0,05–0,09 | 0,06–0,12 | 0,08–0,14 | 0,09–0,16 | 0,11–0,18 | 0,13–0,21 | 0,15–0,23 | 0,17–0,26 |
| M 14.3 | 40 | – | 70 | mm/r | 0,05–0,11 | 0,07–0,13 | 0,09–0,14 | 0,11–0,19 | 0,11–0,21 | 0,13–0,23 | 0,15–0,26 | 0,17–0,29 |
| 14.2, 14.4 | 35 | – | 50 | mm/r | 0,05–0,09 | 0,07–0,12 | 0,08–0,13 | 0,09–0,16 | 0,11–0,18 | 0,13–0,20 | 0,15–0,22 | 0,17–0,26 |
tolerance
nominal size range D1 tolerance m7 D tolerance h6
| >3–6 | 0,004/0,016 | 0,000/-0,008 |
| >6–10 | 0,006/0,021 | 0,000/-0,009 |
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| >3–6 | 0,004/0,016 | 0,000/-0,008 |
| >6–10 | 0,006/0,021 | 0,000/-0,009 |
| >10–18 | 0,007/0,025 | 0,000/-0,011 |
| >18–25,4 | 0,008/0,029 | 0,000/-0,013 |
