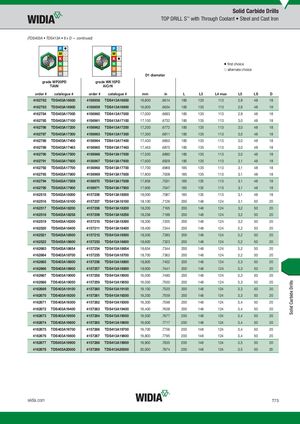

(TDS403A • TDS413A • 8 x D — continued)
| D1 dia | meter | �firs �alt | it choice ernate cho | ice | |||||
| WP20PD grade WP20PD TiAlN | WK15PD grade WK15PD AlCrN | ||||||||
| order # catalogue # | order # catalogue # | mm | in | L | L3 | L4 max | L5 | LS | D |
| 4162782 TDS403A16800 | 4156958 TDS413A16800 | 16,800 | .6614 | 185 | 135 | 113 | 2,9 | 48 | 18 |
| 4162783 TDS403A16900 | 4156959 TDS413A16900 | 16,900 | .6654 | 185 | 135 | 113 | 2,9 | 48 | 18 |
| 4162784 TDS403A17000 | 4156960 TDS413A17000 | 17,000 | .6693 | 185 | 135 | 113 | 2,9 | 48 | 18 |
| 4162785 TDS403A17100 | 4156961 TDS413A17100 | 17,100 | .6732 | 185 | 135 | 113 | 3,0 | 48 | 18 |
| 4162786 TDS403A17200 | 4156962 TDS413A17200 | 17,200 | .6772 | 185 | 135 | 113 | 3,0 | 48 | 18 |
| 4162787 TDS403A17300 | 4156963 TDS413A17300 | 17,300 | .6811 | 185 | 135 | 113 | 3,0 | 48 | 18 |
| 4162788 TDS403A17400 | 4156964 TDS413A17400 | 17,400 | .6850 | 185 | 135 | 113 | 3,0 | 48 | 18 |
| 4162789 TDS403A17463 | 4156965 TDS413A17463 | 17,463 | .6875 | 185 | 135 | 113 | 3,0 | 48 | 18 |
| 4162790 TDS403A17500 | 4156966 TDS413A17500 | 17,500 | .6890 | 185 | 135 | 113 | 3,0 | 48 | 18 |
| 4162791 TDS403A17600 | 4156967 TDS413A17600 | 17,600 | .6929 | 185 | 135 | 113 | 3,1 | 48 | 18 |
| 4162792 TDS403A17700 | 4156968 TDS413A17700 | 17,700 | .6969 | 185 | 135 | 113 | 3,1 | 48 | 18 |
| 4162793 TDS403A17800 | 4156969 TDS413A17800 | 17,800 | .7008 | 185 | 135 | 113 | 3,1 | 48 | 18 |
| 4162794 TDS403A17859 | 4156970 TDS413A17859 | 17,859 | .7031 | 185 | 135 | 113 | 3,1 | 48 | 18 |
| 4162795 TDS403A17900 | 4156971 TDS413A17900 | 17,900 | .7047 | 185 | 135 | 113 | 3,1 | 48 | 18 |
| 4162515 TDS403A18000 | 4157206 TDS413A18000 | 18,000 | .7087 | 185 | 135 | 113 | 3,1 | 48 | 18 |
| 4162516 TDS403A18100 | 4157207 TDS413A18100 | 18,100 | .7126 | 200 | 148 | 124 | 3,1 | 50 | 20 |
| 4162517 TDS403A18200 | 4157208 TDS413A18200 | 18,200 | .7165 | 200 | 148 | 124 | 3,2 | 50 | 20 |
| 4162518 TDS403A18258 | 4157209 TDS413A18258 | 18,258 | .7188 | 200 | 148 | 124 | 3,2 | 50 | 20 |
| 4162519 TDS403A18300 | 4157210 TDS413A18300 | 18,300 | .7205 | 200 | 148 | 124 | 3,2 | 50 | 20 |
| 4162520 TDS403A18400 | 4157211 TDS413A18400 | 18,400 | .7244 | 200 | 148 | 124 | 3,2 | 50 | 20 |
| 4162521 TDS403A18500 | 4157212 TDS413A18500 | 18,500 | .7283 | 200 | 148 | 124 | 3,2 | 50 | 20 |
| 4162522 TDS403A18600 | 4157253 TDS413A18600 | 18,600 | .7323 | 200 | 148 | 124 | 3,2 | 50 | 20 |
| 4162663 TDS403A18654 | 4157254 TDS413A18654 | 18,654 | .7344 | 200 | 148 | 124 | 3,2 | 50 | 20 |
| 4162664 TDS403A18700 | 4157255 TDS413A18700 | 18,700 | .7362 | 200 | 148 | 124 | 3,2 | 50 | 20 |
| 4162665 TDS403A18800 | 4157256 TDS413A18800 | 18,800 | .7402 | 200 | 148 | 124 | 3,3 | 50 | 20 |
| 4162666 TDS403A18900 | 4157257 TDS413A18900 | 18,900 | .7441 | 200 | 148 | 124 | 3,3 | 50 | 20 |
| 4162667 TDS403A19000 | 4157258 TDS413A19000 | 19,000 | .7480 | 200 | 148 | 124 | 3,3 | 50 | 20 |
| 4162668 TDS403A19050 | 4157259 TDS413A19050 | 19,050 | .7500 | 200 | 148 | 124 | 3,3 | 50 | 20 |
| 4162669 TDS403A19100 | 4157260 TDS413A19100 | 19,100 | .7520 | 200 | 148 | 124 | 3,3 | 50 | 20 |
| 4162670 TDS403A19200 | 4157261 TDS413A19200 | 19,200 | .7559 | 200 | 148 | 124 | 3,3 | 50 | 20 |
| 4162671 TDS403A19300 | 4157262 TDS413A19300 | 19,300 | .7598 | 200 | 148 | 124 | 3,4 | 50 | 20 |
| 4162672 TDS403A19400 | 4157263 TDS413A19400 | 19,400 | .7638 | 200 | 148 | 124 | 3,4 | 50 | 20 |
| 4162673 TDS403A19500 | 4157264 TDS413A19500 | 19,500 | .7677 | 200 | 148 | 124 | 3,4 | 50 | 20 |
| 4162674 TDS403A19600 | 4157265 TDS413A19600 | 19,600 | .7717 | 200 | 148 | 124 | 3,4 | 50 | 20 |
| 4162675 TDS403A19700 | 4157266 TDS413A19700 | 19,700 | .7756 | 200 | 148 | 124 | 3,4 | 50 | 20 |
| 4162676 TDS403A19800 | 4157267 TDS413A19800 | 19,800 | .7795 | 200 | 148 | 124 | 3,4 | 50 | 20 |
| 4162677 TDS403A19900 | 4157268 TDS413A19900 | 19,900 | .7835 | 200 | 148 | 124 | 3,5 | 50 | 20 |
| 4162678 TDS403A20000 | 4157269 TDS413A20000 | 20,000 | .7874 | 200 | 148 | 124 | 3,5 | 50 | 20 |
