(TDS401A • TDS411A • 3 x D — continued)

		D1 dia	meter			�fir �al	ist choice ternate cho	ice
WP20PD grade WP20PD TiAlN	WK15PD grade WK15PD AlCrN
order # catalogue #	order # catalogue #	mm	in	L	L3	L4 max	L5	LS	D
4163419 TDS401A16500	4156681 TDS411A16500	16,500	.6496	123	73	51	2,9	48	18
4163420 TDS401A16600	4156682 TDS411A16600	16,600	.6535	123	73	51	2,9	48	18
4163421 TDS401A16670	4156683 TDS411A16670	16,670	.6563	123	73	51	2,9	48	18
4163422 TDS401A16700	4156684 TDS411A16700	16,700	.6575	123	73	51	2,9	48	18
4163423 TDS401A16800	4156685 TDS411A16800	16,800	.6614	123	73	51	2,9	48	18
4163424 TDS401A16900	4156686 TDS411A16900	16,900	.6654	123	73	51	2,9	48	18
4163425 TDS401A17000	4156687 TDS411A17000	17,000	.6693	123	73	51	2,9	48	18
4163426 TDS401A17100	4156688 TDS411A17100	17,100	.6732	123	73	51	3,0	48	18
4163427 TDS401A17200	4156689 TDS411A17200	17,200	.6772	123	73	51	3,0	48	18
4163428 TDS401A17300	4156690 TDS411A17300	17,300	.6811	123	73	51	3,0	48	18
4163429 TDS401A17400	4156691 TDS411A17400	17,400	.6850	123	73	51	3,0	48	18
4163430 TDS401A17463	4156692 TDS411A17463	17,463	.6875	123	73	51	3,0	48	18
4163431 TDS401A17500	4156693 TDS411A17500	17,500	.6890	123	73	51	3,0	48	18
4163432 TDS401A17600	4156694 TDS411A17600	17,600	.6929	123	73	51	3,1	48	18
4163433 TDS401A17700	4156695 TDS411A17700	17,700	.6969	123	73	51	3,1	48	18
4163434 TDS401A17800	4156696 TDS411A17800	17,800	.7008	123	73	51	3,1	48	18
4163435 TDS401A17859	4156697 TDS411A17859	17,859	.7031	123	73	51	3,1	48	18
4163436 TDS401A17900	4156698 TDS411A17900	17,900	.7047	123	73	51	3,1	48	18
4163271 TDS401A18000	4156699 TDS411A18000	18,000	.7087	123	73	51	3,1	48	18
4163272 TDS401A18100	4156700 TDS411A18100	18,100	.7126	131	79	55	3,1	50	20
4163283 TDS401A18200	4156701 TDS411A18200	18,200	.7165	131	79	55	3,2	50	20
4163284 TDS401A18258	4156702 TDS411A18258	18,258	.7188	131	79	55	3,2	50	20
4163285 TDS401A18300	4156713 TDS411A18300	18,300	.7205	131	79	55	3,2	50	20
4163286 TDS401A18400	4156714 TDS411A18400	18,400	.7244	131	79	55	3,2	50	20
4163287 TDS401A18500	4156715 TDS411A18500	18,500	.7283	131	79	55	3,2	50	20
4163288 TDS401A18600	4156716 TDS411A18600	18,600	.7323	131	79	55	3,2	50	20
4163289 TDS401A18654	4156717 TDS411A18654	18,654	.7344	131	79	55	3,2	50	20
4163290 TDS401A18700	4156718 TDS411A18700	18,700	.7362	131	79	55	3,2	50	20
4163291 TDS401A18800	4156719 TDS411A18800	18,800	.7402	131	79	55	3,3	50	20
4163292 TDS401A18900	4156720 TDS411A18900	18,900	.7441	131	79	55	3,3	50	20
4163293 TDS401A19000	4156721 TDS411A19000	19,000	.7480	131	79	55	3,3	50	20
4163294 TDS401A19050	4156722 TDS411A19050	19,050	.7500	131	79	55	3,3	50	20
4163295 TDS401A19100	4156723 TDS411A19100	19,100	.7520	131	79	55	3,3	50	20
4163296 TDS401A19200	4156724 TDS411A19200	19,200	.7559	131	79	55	3,3	50	20
4163297 TDS401A19300	4156725 TDS411A19300	19,300	.7598	131	79	55	3,4	50	20
4163298 TDS401A19400	4156726 TDS411A19400	19,400	.7638	131	79	55	3,4	50	20
4163299 TDS401A19500	4156727 TDS411A19500	19,500	.7677	131	79	55	3,4	50	20
4163300 TDS401A19600	4156728 TDS411A19600	19,600	.7717	131	79	55	3,4	50	20
4163301 TDS401A19700	4156729 TDS411A19700	19,700	.7756	131	79	55	3,4	50	20
4163302 TDS401A19800	4156730 TDS411A19800	19,800	.7795	131	79	55	3,4	50	20
4163303 TDS401A19900	4156731 TDS411A19900	19,900	.7835	131	79	55	3,5	50	20
4163304 TDS401A20000	4156732 TDS411A20000	20,000	.7874	131	79	55	3,5	50	20

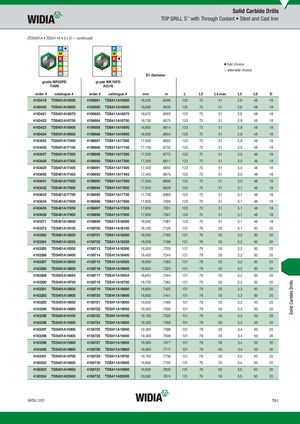

Общий каталог Widia 2017 - страница 1429
