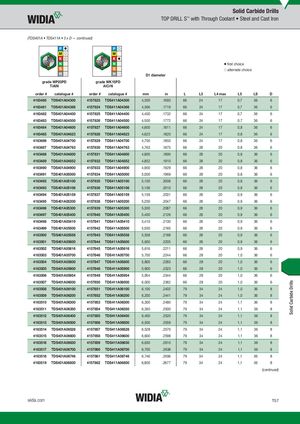

(TDS401A • TDS411A • 3 x D — continued)
| �firs | it choice | ||||||||
| D1 dia | meter | �alt | ernate cho | ice | |||||
| WP20PD grade WP20PD TiAlN | WK15PD grade WK15PD AlCrN | ||||||||
| order # catalogue # | order # catalogue # | mm | in | L | L3 | L4 max | L5 | LS | D |
| 4163480 TDS401A04300 | 4157823 TDS411A04300 | 4,300 | .1693 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163481 TDS401A04366 | 4157824 TDS411A04366 | 4,366 | .1719 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163482 TDS401A04400 | 4157825 TDS411A04400 | 4,400 | .1732 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163483 TDS401A04500 | 4157826 TDS411A04500 | 4,500 | .1772 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163484 TDS401A04600 | 4157827 TDS411A04600 | 4,600 | .1811 | 66 | 24 | 17 | 0,8 | 36 | 6 |
| 4163485 TDS401A04623 | 4157828 TDS411A04623 | 4,623 | .1820 | 66 | 24 | 17 | 0,8 | 36 | 6 |
| 4163486 TDS401A04700 | 4157829 TDS411A04700 | 4,700 | .1850 | 66 | 24 | 17 | 0,8 | 36 | 6 |
| 4163487 TDS401A04763 | 4157830 TDS411A04763 | 4,763 | .1875 | 66 | 28 | 20 | 0,8 | 36 | 6 |
| 4163488 TDS401A04800 | 4157831 TDS411A04800 | 4,800 | .1890 | 66 | 28 | 20 | 0,8 | 36 | 6 |
| 4163489 TDS401A04852 | 4157832 TDS411A04852 | 4,852 | .1910 | 66 | 28 | 20 | 0,8 | 36 | 6 |
| 4163490 TDS401A04900 | 4157833 TDS411A04900 | 4,900 | .1929 | 66 | 28 | 20 | 0,8 | 36 | 6 |
| 4163491 TDS401A05000 | 4157834 TDS411A05000 | 5,000 | .1969 | 66 | 28 | 20 | 0,8 | 36 | 6 |
| 4163492 TDS401A05100 | 4157835 TDS411A05100 | 5,100 | .2008 | 66 | 28 | 20 | 0,8 | 36 | 6 |
| 4163493 TDS401A05106 | 4157836 TDS411A05106 | 5,106 | .2010 | 66 | 28 | 20 | 0,8 | 36 | 6 |
| 4163494 TDS401A05159 | 4157837 TDS411A05159 | 5,159 | .2031 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163495 TDS401A05200 | 4157838 TDS411A05200 | 5,200 | .2047 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163496 TDS401A05300 | 4157839 TDS411A05300 | 5,300 | .2087 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163497 TDS401A05400 | 4157840 TDS411A05400 | 5,400 | .2126 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163498 TDS401A05410 | 4157841 TDS411A05410 | 5,410 | .2130 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163499 TDS401A05500 | 4157842 TDS411A05500 | 5,500 | .2165 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163500 TDS401A05558 | 4157843 TDS411A05558 | 5,558 | .2188 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163501 TDS401A05600 | 4157844 TDS411A05600 | 5,600 | .2205 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163502 TDS401A05616 | 4157845 TDS411A05616 | 5,616 | .2211 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 4163503 TDS401A05700 | 4157846 TDS411A05700 | 5,700 | .2244 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 4163504 TDS401A05800 | 4157847 TDS411A05800 | 5,800 | .2283 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 4163505 TDS401A05900 | 4157848 TDS411A05900 | 5,900 | .2323 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 4163506 TDS401A05954 | 4157849 TDS411A05954 | 5,954 | .2344 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 4163507 TDS401A06000 | 4157850 TDS411A06000 | 6,000 | .2362 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 4163508 TDS401A06100 | 4157851 TDS411A06100 | 6,100 | .2402 | 79 | 34 | 24 | 1,0 | 36 | 8 |
| 4163509 TDS401A06200 | 4157852 TDS411A06200 | 6,200 | .2441 | 79 | 34 | 24 | 1,0 | 36 | 8 |
| 4163510 TDS401A06300 | 4157853 TDS411A06300 | 6,300 | .2480 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163511 TDS401A06350 | 4157854 TDS411A06350 | 6,350 | .2500 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163512 TDS401A06400 | 4157855 TDS411A06400 | 6,400 | .2520 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163513 TDS401A06500 | 4157856 TDS411A06500 | 6,500 | .2559 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163514 TDS401A06528 | 4157857 TDS411A06528 | 6,528 | .2570 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163515 TDS401A06600 | 4157858 TDS411A06600 | 6,600 | .2598 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163516 TDS401A06630 | 4157859 TDS411A06630 | 6,630 | .2610 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163517 TDS401A06700 | 4157860 TDS411A06700 | 6,700 | .2638 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163518 TDS401A06746 | 4157861 TDS411A06746 | 6,746 | .2656 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 4163519 TDS401A06800 | 4157862 TDS411A06800 | 6,800 | .2677 | 79 | 34 | 24 | 1,1 | 36 | 8 |
