For information on L, L3, and L4 max, see page T143.

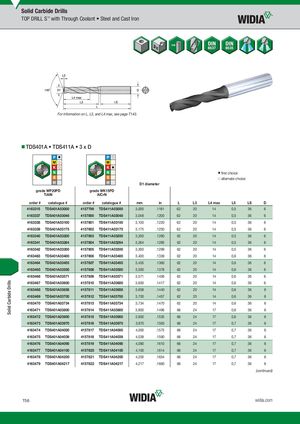

TDS401A • TDS411A • 3 x D
first choice
| �firs | it choice | ||||||||
| D1 dia | meter | �alte | rnate cho | ice | |||||
| WP20PD grade WP20PD TiAlN | WK15PD grade WK15PD AlCrN | ||||||||
| order # catalogue # | order # catalogue # | mm | in | L | L3 | L4 max | L5 | LS | D |
| 4163315 TDS401A03000 | 4157799 TDS411A03000 | 3,000 | .1181 | 62 | 20 | 14 | 0,5 | 36 | 6 |
| 4163337 TDS401A03048 | 4157800 TDS411A03048 | 3,048 | .1200 | 62 | 20 | 14 | 0,5 | 36 | 6 |
| 4163338 TDS401A03100 | 4157801 TDS411A03100 | 3,100 | .1220 | 62 | 20 | 14 | 0,5 | 36 | 6 |
| 4163339 TDS401A03175 | 4157802 TDS411A03175 | 3,175 | .1250 | 62 | 20 | 14 | 0,5 | 36 | 6 |
| 4163340 TDS401A03200 | 4157803 TDS411A03200 | 3,200 | .1260 | 62 | 20 | 14 | 0,5 | 36 | 6 |
| 4163341 TDS401A03264 | 4157804 TDS411A03264 | 3,264 | .1285 | 62 | 20 | 14 | 0,5 | 36 | 6 |
| 4163342 TDS401A03300 | 4157805 TDS411A03300 | 3,300 | .1299 | 62 | 20 | 14 | 0,5 | 36 | 6 |
| 4163463 TDS401A03400 | 4157806 TDS411A03400 | 3,400 | .1339 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| 4163464 TDS401A03455 | 4157807 TDS411A03455 | 3,455 | .1360 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| 4163465 TDS401A03500 | 4157808 TDS411A03500 | 3,500 | .1378 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| 4163466 TDS401A03571 | 4157809 TDS411A03571 | 3,571 | .1406 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| 4163467 TDS401A03600 | 4157810 TDS411A03600 | 3,600 | .1417 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| 4163468 TDS401A03658 | 4157811 TDS411A03658 | 3,658 | .1440 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| 4163469 TDS401A03700 | 4157812 TDS411A03700 | 3,700 | .1457 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| 4163470 TDS401A03734 | 4157813 TDS411A03734 | 3,734 | .1470 | 62 | 20 | 14 | 0,6 | 36 | 6 |
| 4163471 TDS401A03800 | 4157814 TDS411A03800 | 3,800 | .1496 | 66 | 24 | 17 | 0,6 | 36 | 6 |
| 4163472 TDS401A03900 | 4157815 TDS411A03900 | 3,900 | .1535 | 66 | 24 | 17 | 0,6 | 36 | 6 |
| 4163473 TDS401A03970 | 4157816 TDS411A03970 | 3,970 | .1563 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163474 TDS401A04000 | 4157817 TDS411A04000 | 4,000 | .1575 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163475 TDS401A04039 | 4157818 TDS411A04039 | 4,039 | .1590 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163476 TDS401A04090 | 4157819 TDS411A04090 | 4,090 | .1610 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163477 TDS401A04100 | 4157820 TDS411A04100 | 4,100 | .1614 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163478 TDS401A04200 | 4157821 TDS411A04200 | 4,200 | .1654 | 66 | 24 | 17 | 0,7 | 36 | 6 |
| 4163479 TDS401A04217 | 4157822 TDS411A04217 | 4,217 | .1660 | 66 | 24 | 17 | 0,7 | 36 | 6 |
