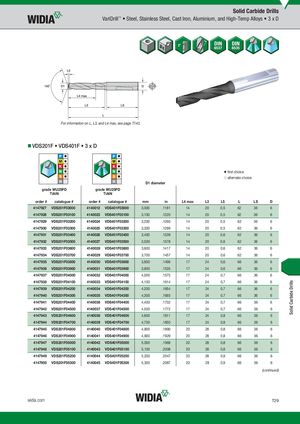

For information on L, L3, and L4 max, see page T143.
VDS201F • VDS401F • 3 x D
first choice
| �firs | it choice | ||||||||
| D1 dia | meter | �alt | ernate cho | ice | |||||
| VDS201F • WU25PD grade WU25PD TiAlN | VDS401F • WU25PD grade WU25PD TiAlN | ||||||||
| order # catalogue # | order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D |
| 4147927 VDS201F03000 | 4140012 VDS401F03000 | 3,000 | .1181 | 14 | 20 | 0,5 | 62 | 36 | 6 |
| 4147928 VDS201F03100 | 4140023 VDS401F03100 | 3,100 | .1220 | 14 | 20 | 0,5 | 62 | 36 | 6 |
| 4147929 VDS201F03200 | 4140024 VDS401F03200 | 3,200 | .1260 | 14 | 20 | 0,5 | 62 | 36 | 6 |
| 4147930 VDS201F03300 | 4140025 VDS401F03300 | 3,300 | .1299 | 14 | 20 | 0,5 | 62 | 36 | 6 |
| 4147931 VDS201F03400 | 4140026 VDS401F03400 | 3,400 | .1339 | 14 | 20 | 0,6 | 62 | 36 | 6 |
| 4147932 VDS201F03500 | 4140027 VDS401F03500 | 3,500 | .1378 | 14 | 20 | 0,6 | 62 | 36 | 6 |
| 4147933 VDS201F03600 | 4140028 VDS401F03600 | 3,600 | .1417 | 14 | 20 | 0,6 | 62 | 36 | 6 |
| 4147934 VDS201F03700 | 4140029 VDS401F03700 | 3,700 | .1457 | 14 | 20 | 0,6 | 62 | 36 | 6 |
| 4147935 VDS201F03800 | 4140030 VDS401F03800 | 3,800 | .1496 | 17 | 24 | 0,6 | 66 | 36 | 6 |
| 4147936 VDS201F03900 | 4140031 VDS401F03900 | 3,900 | .1535 | 17 | 24 | 0,6 | 66 | 36 | 6 |
| 4147937 VDS201F04000 | 4140032 VDS401F04000 | 4,000 | .1575 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4147938 VDS201F04100 | 4140033 VDS401F04100 | 4,100 | .1614 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4147939 VDS201F04200 | 4140034 VDS401F04200 | 4,200 | .1654 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4147940 VDS201F04300 | 4140035 VDS401F04300 | 4,300 | .1693 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4147941 VDS201F04400 | 4140036 VDS401F04400 | 4,400 | .1732 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4147942 VDS201F04500 | 4140037 VDS401F04500 | 4,500 | .1772 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4147943 VDS201F04600 | 4140038 VDS401F04600 | 4,600 | .1811 | 17 | 24 | 0,8 | 66 | 36 | 6 |
| 4147944 VDS201F04700 | 4140039 VDS401F04700 | 4,700 | .1850 | 17 | 24 | 0,8 | 66 | 36 | 6 |
| 4147945 VDS201F04800 | 4140040 VDS401F04800 | 4,800 | .1890 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4147946 VDS201F04900 | 4140041 VDS401F04900 | 4,900 | .1929 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4147947 VDS201F05000 | 4140042 VDS401F05000 | 5,000 | .1969 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4147948 VDS201F05100 | 4140043 VDS401F05100 | 5,100 | .2008 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4147949 VDS201F05200 | 4140044 VDS401F05200 | 5,200 | .2047 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4147950 VDS201F05300 | 4140045 VDS401F05300 | 5,300 | .2087 | 20 | 28 | 0,9 | 66 | 36 | 6 |
