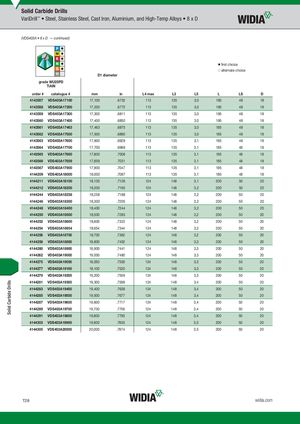

(VDS403A • 8 x D — continued)
first choice
| D1 dia | meter | |||||||
| WU25PD grade WU25PD TiAlN | ||||||||
| order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D |
| 4143557 VDS403A17100 | 17,100 | .6732 | 113 | 135 | 3,0 | 185 | 48 | 18 |
| 4143558 VDS403A17200 | 17,200 | .6772 | 113 | 135 | 3,0 | 185 | 48 | 18 |
| 4143559 VDS403A17300 | 17,300 | .6811 | 113 | 135 | 3,0 | 185 | 48 | 18 |
| 4143560 VDS403A17400 | 17,400 | .6850 | 113 | 135 | 3,0 | 185 | 48 | 18 |
| 4143561 VDS403A17463 | 17,463 | .6875 | 113 | 135 | 3,0 | 185 | 48 | 18 |
| 4143562 VDS403A17500 | 17,500 | .6890 | 113 | 135 | 3,0 | 185 | 48 | 18 |
| 4143563 VDS403A17600 | 17,600 | .6929 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4143564 VDS403A17700 | 17,700 | .6969 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4143565 VDS403A17800 | 17,800 | .7008 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4143566 VDS403A17859 | 17,859 | .7031 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4143567 VDS403A17900 | 17,900 | .7047 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4144209 VDS403A18000 | 18,000 | .7087 | 113 | 135 | 3,1 | 185 | 48 | 18 |
| 4144211 VDS403A18100 | 18,100 | .7126 | 124 | 148 | 3,1 | 200 | 50 | 20 |
| 4144212 VDS403A18200 | 18,200 | .7165 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144244 VDS403A18258 | 18,258 | .7188 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144246 VDS403A18300 | 18,300 | .7205 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144248 VDS403A18400 | 18,400 | .7244 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144250 VDS403A18500 | 18,500 | .7283 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144252 VDS403A18600 | 18,600 | .7323 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144254 VDS403A18654 | 18,654 | .7344 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144256 VDS403A18700 | 18,700 | .7362 | 124 | 148 | 3,2 | 200 | 50 | 20 |
| 4144258 VDS403A18800 | 18,800 | .7402 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144260 VDS403A18900 | 18,900 | .7441 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144262 VDS403A19000 | 19,000 | .7480 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144275 VDS403A19050 | 19,050 | .7500 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144277 VDS403A19100 | 19,100 | .7520 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144279 VDS403A19200 | 19,200 | .7559 | 124 | 148 | 3,3 | 200 | 50 | 20 |
| 4144281 VDS403A19300 | 19,300 | .7598 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144283 VDS403A19400 | 19,400 | .7638 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144285 VDS403A19500 | 19,500 | .7677 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144287 VDS403A19600 | 19,600 | .7717 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144289 VDS403A19700 | 19,700 | .7756 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144291 VDS403A19800 | 19,800 | .7795 | 124 | 148 | 3,4 | 200 | 50 | 20 |
| 4144303 VDS403A19900 | 19,900 | .7835 | 124 | 148 | 3,5 | 200 | 50 | 20 |
| 4144305 VDS403A20000 | 20,000 | .7874 | 124 | 148 | 3,5 | 200 | 50 | 20 |
