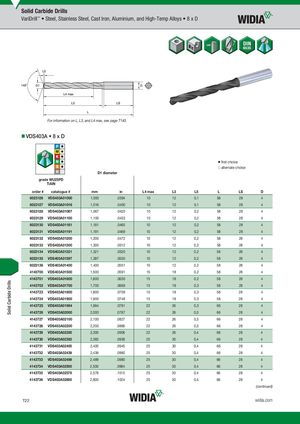

Общий каталог Widia 2017 - страница 1390
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
For information on L, L3, and L4 max, see page T143.
VDS403A • 8 x D
| �first c | i hoice | |||||||
| D1 dia | meter | �altern | ate choice | |||||
| WU25PD grade WU25PD TiAlN | ||||||||
| order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D |
| 6023126 VDS403A01000 | 1,000 | .0394 | 10 | 12 | 0,1 | 58 | 28 | 4 |
| 6023127 VDS403A01016 | 1,016 | .0400 | 10 | 12 | 0,1 | 58 | 28 | 4 |
| 6023128 VDS403A01067 | 1,067 | .0420 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 6023129 VDS403A01100 | 1,100 | .0433 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 6023130 VDS403A01181 | 1,181 | .0465 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 6023131 VDS403A01191 | 1,191 | .0469 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 6023132 VDS403A01200 | 1,200 | .0472 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 6023133 VDS403A01300 | 1,300 | .0512 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 6023134 VDS403A01321 | 1,321 | .0520 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 6023135 VDS403A01397 | 1,397 | .0550 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 6023136 VDS403A01400 | 1,400 | .0551 | 10 | 12 | 0,2 | 58 | 28 | 4 |
| 4143700 VDS403A01500 | 1,500 | .0591 | 15 | 18 | 0,2 | 58 | 28 | 4 |
| 4143701 VDS403A01600 | 1,600 | .0630 | 15 | 18 | 0,2 | 58 | 28 | 4 |
| 4143702 VDS403A01700 | 1,700 | .0669 | 15 | 18 | 0,3 | 58 | 28 | 4 |
| 4143723 VDS403A01800 | 1,800 | .0709 | 15 | 18 | 0,3 | 58 | 28 | 4 |
| 4143724 VDS403A01900 | 1,900 | .0748 | 15 | 18 | 0,3 | 58 | 28 | 4 |
| 4143725 VDS403A01984 | 1,984 | .0781 | 22 | 26 | 0,3 | 66 | 28 | 4 |
| 4143726 VDS403A02000 | 2,000 | .0787 | 22 | 26 | 0,3 | 66 | 28 | 4 |
| 4143727 VDS403A02100 | 2,100 | .0827 | 22 | 26 | 0,3 | 66 | 28 | 4 |
| 4143728 VDS403A02200 | 2,200 | .0866 | 22 | 26 | 0,3 | 66 | 28 | 4 |
| 4143729 VDS403A02300 | 2,300 | .0906 | 22 | 26 | 0,4 | 66 | 28 | 4 |
| 4143730 VDS403A02383 | 2,383 | .0938 | 25 | 30 | 0,4 | 66 | 28 | 4 |
| 4143731 VDS403A02400 | 2,400 | .0945 | 25 | 30 | 0,4 | 66 | 28 | 4 |
| 4143732 VDS403A02439 | 2,439 | .0960 | 25 | 30 | 0,4 | 66 | 28 | 4 |
| 4143733 VDS403A02489 | 2,489 | .0980 | 25 | 30 | 0,4 | 66 | 28 | 4 |
| 4143734 VDS403A02500 | 2,500 | .0984 | 25 | 30 | 0,4 | 66 | 28 | 4 |
| 4143735 VDS403A02578 | 2,578 | .1015 | 25 | 30 | 0,4 | 66 | 28 | 4 |
| 4143736 VDS403A02600 | 2,600 | .1024 | 25 | 30 | 0,4 | 66 | 28 | 4 |
