(VDS202A • VDS402A • 5 x D — continued)

		D1 dia	meter			�fir �alt	ist choice ernate cho	ice
VDS202A • WU25PD grade WU25PD TiAlN	VDS402A • WU25PD grade WU25PD TiAlN
order # catalogue #	order # catalogue #	mm	in	L4 max	L3	L5	L	LS	D
4148388 VDS202A16600	4143057 VDS402A16600	16,600	.6535	71	93	2,9	143	48	18
4148389 VDS202A16670	4143058 VDS402A16670	16,670	.6563	71	93	2,9	143	48	18
4148390 VDS202A16700	4143059 VDS402A16700	16,700	.6575	71	93	2,9	143	48	18
4148391 VDS202A16800	4143060 VDS402A16800	16,800	.6614	71	93	2,9	143	48	18
4148392 VDS202A16900	4143061 VDS402A16900	16,900	.6654	71	93	2,9	143	48	18
4148393 VDS202A17000	4143062 VDS402A17000	17,000	.6693	71	93	2,9	143	48	18
4148394 VDS202A17100	4143073 VDS402A17100	17,100	.6732	71	93	3,0	143	48	18
4148395 VDS202A17200	4143074 VDS402A17200	17,200	.6772	71	93	3,0	143	48	18
4148396 VDS202A17300	4143075 VDS402A17300	17,300	.6811	71	93	3,0	143	48	18
4148397 VDS202A17400	4143076 VDS402A17400	17,400	.6850	71	93	3,0	143	48	18
4148398 VDS202A17463	4143077 VDS402A17463	17,463	.6875	71	93	3,0	143	48	18
4148399 VDS202A17500	4143078 VDS402A17500	17,500	.6890	71	93	3,0	143	48	18
4148400 VDS202A17600	4143079 VDS402A17600	17,600	.6929	71	93	3,1	143	48	18
4148401 VDS202A17700	4143080 VDS402A17700	17,700	.6969	71	93	3,1	143	48	18
4148402 VDS202A17800	4143081 VDS402A17800	17,800	.7008	71	93	3,1	143	48	18
4148403 VDS202A17859	4143082 VDS402A17859	17,859	.7031	71	93	3,1	143	48	18
4148404 VDS202A17900	4143093 VDS402A17900	17,900	.7047	71	93	3,1	143	48	18
4147921 VDS202A18000	4142803 VDS402A18000	18,000	.7087	71	93	3,1	143	48	18
4147922 VDS202A18100	4142804 VDS402A18100	18,100	.7126	77	101	3,1	153	50	20
4148303 VDS202A18200	4142805 VDS402A18200	18,200	.7165	77	101	3,2	153	50	20
4148304 VDS202A18258	4142806 VDS402A18258	18,258	.7188	77	101	3,2	153	50	20
4148305 VDS202A18300	4142807 VDS402A18300	18,300	.7205	77	101	3,2	153	50	20
4148306 VDS202A18400	4142808 VDS402A18400	18,400	.7244	77	101	3,2	153	50	20
4148307 VDS202A18500	4142809 VDS402A18500	18,500	.7283	77	101	3,2	153	50	20
4148308 VDS202A18600	4142810 VDS402A18600	18,600	.7323	77	101	3,2	153	50	20
4148309 VDS202A18654	4142811 VDS402A18654	18,654	.7344	77	101	3,2	153	50	20
4148310 VDS202A18700	4142812 VDS402A18700	18,700	.7362	77	101	3,2	153	50	20
4148311 VDS202A18800	4142824 VDS402A18800	18,800	.7402	77	101	3,3	153	50	20
4148312 VDS202A18900	4142826 VDS402A18900	18,900	.7441	77	101	3,3	153	50	20
4148323 VDS202A19000	4142828 VDS402A19000	19,000	.7480	77	101	3,3	153	50	20
4148324 VDS202A19050	4142830 VDS402A19050	19,050	.7500	77	101	3,3	153	50	20
4148325 VDS202A19100	4142833 VDS402A19100	19,100	.7520	77	101	3,3	153	50	20
4148326 VDS202A19200	4142835 VDS402A19200	19,200	.7559	77	101	3,3	153	50	20
4148327 VDS202A19300	4142837 VDS402A19300	19,300	.7598	77	101	3,4	153	50	20
4148328 VDS202A19400	4142839 VDS402A19400	19,400	.7638	77	101	3,4	153	50	20
4148329 VDS202A19500	4142841 VDS402A19500	19,500	.7677	77	101	3,4	153	50	20
4148330 VDS202A19600	4142853 VDS402A19600	19,600	.7717	77	101	3,4	153	50	20
4148331 VDS202A19700	4142854 VDS402A19700	19,700	.7756	77	101	3,4	153	50	20
4148332 VDS202A19800	4142856 VDS402A19800	19,800	.7795	77	101	3,4	153	50	20
4148333 VDS202A19900	4142859 VDS402A19900	19,900	.7835	77	101	3,5	153	50	20
4148334 VDS202A20000	4142860 VDS402A20000	20,000	.7874	77	101	3,5	153	50	20

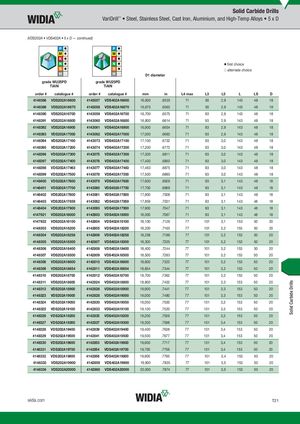

Общий каталог Widia 2017 - страница 1389
