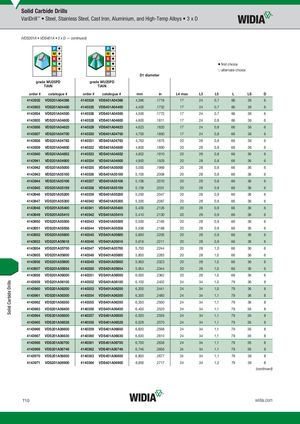

(VDS201A • VDS401A • 3 x D — continued)
first choice alternate choice D1 diameter VDS201A • WU25PDgrade WU25PD VDS401A • WU25PDgrade WU25PD TiAlN TiAlN
| order # catalogue # | order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D |
| 4143932 VDS201A04366 | 4140324 VDS401A04366 | 4,366 | .1719 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4143933 VDS201A04400 | 4140325 VDS401A04400 | 4,400 | .1732 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4143934 VDS201A04500 | 4140326 VDS401A04500 | 4,500 | .1772 | 17 | 24 | 0,7 | 66 | 36 | 6 |
| 4143935 VDS201A04600 | 4140328 VDS401A04600 | 4,600 | .1811 | 17 | 24 | 0,8 | 66 | 36 | 6 |
| 4143936 VDS201A04623 | 4140329 VDS401A04623 | 4,623 | .1820 | 17 | 24 | 0,8 | 66 | 36 | 6 |
| 4143937 VDS201A04700 | 4140330 VDS401A04700 | 4,700 | .1850 | 17 | 24 | 0,8 | 66 | 36 | 6 |
| 4143938 VDS201A04763 | 4140331 VDS401A04763 | 4,763 | .1875 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4143939 VDS201A04800 | 4140332 VDS401A04800 | 4,800 | .1890 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4143940 VDS201A04852 | 4140333 VDS401A04852 | 4,852 | .1910 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4143941 VDS201A04900 | 4140334 VDS401A04900 | 4,900 | .1929 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4143942 VDS201A05000 | 4140335 VDS401A05000 | 5,000 | .1969 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4143943 VDS201A05100 | 4140336 VDS401A05100 | 5,100 | .2008 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4143944 VDS201A05106 | 4140337 VDS401A05106 | 5,106 | .2010 | 20 | 28 | 0,8 | 66 | 36 | 6 |
| 4143945 VDS201A05159 | 4140338 VDS401A05159 | 5,159 | .2031 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143946 VDS201A05200 | 4140339 VDS401A05200 | 5,200 | .2047 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143947 VDS201A05300 | 4140340 VDS401A05300 | 5,300 | .2087 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143948 VDS201A05400 | 4140341 VDS401A05400 | 5,400 | .2126 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143949 VDS201A05410 | 4140342 VDS401A05410 | 5,410 | .2130 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143950 VDS201A05500 | 4140343 VDS401A05500 | 5,500 | .2165 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143951 VDS201A05558 | 4140344 VDS401A05558 | 5,558 | .2188 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143952 VDS201A05600 | 4140345 VDS401A05600 | 5,600 | .2205 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143953 VDS201A05616 | 4140346 VDS401A05616 | 5,616 | .2211 | 20 | 28 | 0,9 | 66 | 36 | 6 |
| 4143954 VDS201A05700 | 4140347 VDS401A05700 | 5,700 | .2244 | 20 | 28 | 1,0 | 66 | 36 | 6 |
| 4143955 VDS201A05800 | 4140348 VDS401A05800 | 5,800 | .2283 | 20 | 28 | 1,0 | 66 | 36 | 6 |
| 4143956 VDS201A05900 | 4140349 VDS401A05900 | 5,900 | .2323 | 20 | 28 | 1,0 | 66 | 36 | 6 |
| 4143957 VDS201A05954 | 4140350 VDS401A05954 | 5,954 | .2344 | 20 | 28 | 1,0 | 66 | 36 | 6 |
| 4143958 VDS201A06000 | 4140351 VDS401A06000 | 6,000 | .2362 | 20 | 28 | 1,0 | 66 | 36 | 6 |
| 4143959 VDS201A06100 | 4140352 VDS401A06100 | 6,100 | .2402 | 24 | 34 | 1,0 | 79 | 36 | 8 |
| 4143960 VDS201A06200 | 4140353 VDS401A06200 | 6,200 | .2441 | 24 | 34 | 1,0 | 79 | 36 | 8 |
| 4143961 VDS201A06300 | 4140354 VDS401A06300 | 6,300 | .2480 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143962 VDS201A06350 | 4140355 VDS401A06350 | 6,350 | .2500 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143963 VDS201A06400 | 4140356 VDS401A06400 | 6,400 | .2520 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143964 VDS201A06500 | 4140357 VDS401A06500 | 6,500 | .2559 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143965 VDS201A06528 | 4140358 VDS401A06528 | 6,528 | .2570 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143966 VDS201A06600 | 4140359 VDS401A06600 | 6,600 | .2598 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143967 VDS201A06630 | 4140360 VDS401A06630 | 6,630 | .2610 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143968 VDS201A06700 | 4140361 VDS401A06700 | 6,700 | .2638 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143969 VDS201A06746 | 4140362 VDS401A06746 | 6,746 | .2656 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143970 VDS201A06800 | 4140363 VDS401A06800 | 6,800 | .2677 | 24 | 34 | 1,1 | 79 | 36 | 8 |
| 4143971 VDS201A06900 | 4140364 VDS401A06900 | 6,900 | .2717 | 24 | 34 | 1,2 | 79 | 36 | 8 |
