For information on L, L3, and L4 max, see page T143.

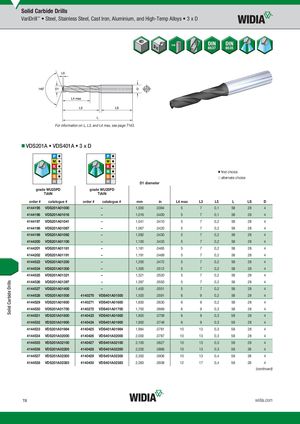

VDS201A • VDS401A • 3 x D
first choice alternate choice D1 diameter VDS201A • WU25PDgrade WU25PD VDS401A • WU25PDgrade WU25PD TiAlN TiAlN
| order # catalogue # | order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D | |
| 4144195 VDS201A01000 | – | 1,000 | .0394 | 5 | 7 | 0,1 | 58 | 28 | 4 | |
| 4144196 VDS201A01016 | – | 1,016 | .0400 | 5 | 7 | 0,1 | 58 | 28 | 4 | |
| 4144197 VDS201A01041 | – | 1,041 | .0410 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144198 VDS201A01067 | – | 1,067 | .0420 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144199 VDS201A01092 | – | 1,092 | .0430 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144200 VDS201A01100 | – | 1,100 | .0433 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144201 VDS201A01181 | – | 1,181 | .0465 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144202 VDS201A01191 | – | 1,191 | .0469 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144523 VDS201A01200 | – | 1,200 | .0472 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144524 VDS201A01300 | – | 1,300 | .0512 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144525 VDS201A01321 | – | 1,321 | .0520 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144526 VDS201A01397 | – | 1,397 | .0550 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144527 VDS201A01400 | – | 1,400 | .0551 | 5 | 7 | 0,2 | 58 | 28 | 4 | |
| 4144528 VDS201A01500 | 4140270 VDS401A01500 | 1,500 | .0591 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4144529 VDS201A01600 | 4140271 VDS401A01600 | 1,600 | .0630 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4144530 VDS201A01700 | 4140272 VDS401A01700 | 1,700 | .0669 | 6 | 9 | 0,3 | 58 | 28 | 4 | |
| 4144531 VDS201A01800 | 4140423 VDS401A01800 | 1,800 | .0709 | 6 | 9 | 0,3 | 58 | 28 | 4 | |
| 4144532 VDS201A01900 | 4140424 VDS401A01900 | 1,900 | .0748 | 6 | 9 | 0,3 | 58 | 28 | 4 | |
| 4144533 VDS201A01984 | 4140425 VDS401A01984 | 1,984 | .0781 | 10 | 13 | 0,3 | 58 | 28 | 4 | |
| 4144534 VDS201A02000 | 4140426 VDS401A02000 | 2,000 | .0787 | 10 | 13 | 0,3 | 58 | 28 | 4 | |
| 4144535 VDS201A02100 | 4140427 VDS401A02100 | 2,100 | .0827 | 10 | 13 | 0,3 | 58 | 28 | 4 | |
| 4144536 VDS201A02200 | 4140428 VDS401A02200 | 2,200 | .0866 | 10 | 13 | 0,3 | 58 | 28 | 4 | |
| 4144537 VDS201A02300 | 4140429 VDS401A02300 | 2,300 | .0906 | 10 | 13 | 0,4 | 58 | 28 | 4 | |
| 4144538 VDS201A02383 | 4140430 VDS401A02383 | 2,383 | .0938 | 12 | 17 | 0,4 | 58 | 28 | 4 |
(continued)
