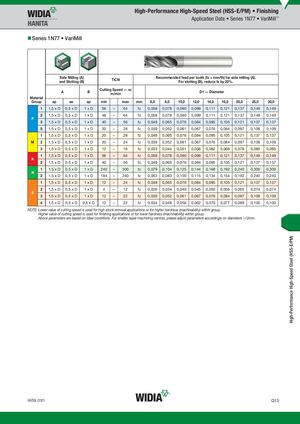

High-Performance High-Speed Steel (HSS-E/PM) • Finishing Application Data • Series 1N77 • VariMill™ „Series 1N77 • VariMill Side Milling (A)and Slotting (B)TiCN Recommended feed per tooth (fz = mm/th) for side milling (A).For slotting (B), reduce fz by 20%. A B Cutting Speed — vcm/min D1 — Diameter Material Group ap ae ap min max mm 6,0 8,0 10,0 12,0 14,0 16,0 20,0 25,0 30,0 1 1,5 x D 0,5 x D 1xD 56 – 64 fz 0,058 0,078 0,090 0,099 0,111 0,121 0,137 0,149 0,149 2 1,5 x D 0,5 x D 1xD 48 – 64 fz 0,058 0,078 0,090 0,099 0,111 0,121 0,137 0,149 0,149 P 3 1,5 x D 0,5 x D 1xD 40 – 56 fz 0,048 0,065 0,076 0,084 0,095 0,105 0,121 0,137 0,137 5 1,5 x D 0,5 x D 1xD 20 – 28 fz 0,039 0,052 0,061 0,067 0,076 0,084 0,097 0,109 0,109 1 1,5 x D 0,5 x D 1xD 20 – 28 fz 0,048 0,065 0,076 0,084 0,095 0,105 0,121 0,137 0,137 M 2 1,5 x D 0,5 x D 1xD 20 – 24 fz 0,039 0,052 0,061 0,067 0,076 0,084 0,097 0,109 0,109 3 1,5 x D 0,5 x D 1xD 12 – 16 fz 0,033 0,044 0,051 0,056 0,062 0,068 0,078 0,085 0,085 1 1,5 x D 0,5 x D 1xD 56 – 64 fz 0,058 0,078 0,090 0,099 0,111 0,121 0,137 0,149 0,149 K 2 1,5 x D 0,5 x D 1xD 40 – 56 fz 0,048 0,065 0,076 0,084 0,095 0,105 0,121 0,137 0,137 1 1,5 x D 0,5 x D 1xD 240 – 300 fz 0,079 0,104 0,125 0,144 0,168 0,192 0,240 0,300 0,300 N 2 1,5 x D 0,5 x D 1xD 184 – 240 fz 0,063 0,083 0,100 0,115 0,134 0,154 0,192 0,240 0,240 1 1,5 x D 0,5 x D 1xD 12 – 24 fz 0,048 0,065 0,076 0,084 0,095 0,105 0,121 0,137 0,137 2 1,5 x D 0,5 x D 1xD 4 – 12 fz 0,026 0,034 0,040 0,045 0,050 0,056 0,065 0,074 0,074 S 3 1,5 x D 0,5 x D 1xD 12 – 22 fz 0,039 0,052 0,061 0,067 0,076 0,084 0,097 0,109 0,109 4 1,5 x D 0,5 x D 0,5 x D 12 – 22 fz 0,034 0,048 0,056 0,062 0,070 0,077 0,089 0,100 0,100 NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm. widia.com Q13 High-Performance High-Speed Steel (HSS-E/PM)
