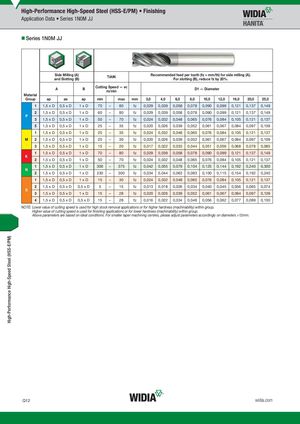

Application Data • Series 1N0M JJ
Series 1N0M JJ
| S a | ide Milling nd Slotting | (A) (B) | TiAl | N | Re | commen | ded feed For slo | per tooth tting (B), | (fz = mm reduce fz | /th) for si by 20%. | de millin | g (A). | ||||
| A | B | Cuttin | g Sp m/m | eed — vc in | D1 | — Diame | ter | |||||||||
| Material | ||||||||||||||||
| Group | ap | ae | ap | min | max | mm | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | 25,0 | |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 70 | – | 80 | fz | 0,029 | 0,039 | 0,058 | 0,078 | 0,090 | 0,099 | 0,121 | 0,137 | 0,149 |
| P 2 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,029 | 0,039 | 0,058 | 0,078 | 0,090 | 0,099 | 0,121 | 0,137 | 0,149 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 50 | – | 70 | fz | 0,024 | 0,032 | 0,048 | 0,065 | 0,076 | 0,084 | 0,105 | 0,121 | 0,137 |
| 5 | 1,5 x D | 0,5 x D | 1 x D | 25 | – | 35 | fz | 0,020 | 0,026 | 0,039 | 0,052 | 0,061 | 0,067 | 0,084 | 0,097 | 0,109 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 25 | – | 35 | fz | 0,024 | 0,032 | 0,048 | 0,065 | 0,076 | 0,084 | 0,105 | 0,121 | 0,137 |
| M 2 | 1,5 x D | 0,5 x D | 1 x D | 25 | – | 30 | fz | 0,020 | 0,026 | 0,039 | 0,052 | 0,061 | 0,067 | 0,084 | 0,097 | 0,109 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 15 | – | 20 | fz | 0,017 | 0,022 | 0,033 | 0,044 | 0,051 | 0,056 | 0,068 | 0,078 | 0,085 |
| K 1 | 1,5 x D | 0,5 x D | 1 x D | 70 | – | 80 | fz | 0,029 | 0,039 | 0,058 | 0,078 | 0,090 | 0,099 | 0,121 | 0,137 | 0,149 |
| 2 | 1,5 x D | 0,5 x D | 1 x D | 50 | – | 70 | fz | 0,024 | 0,032 | 0,048 | 0,065 | 0,076 | 0,084 | 0,105 | 0,121 | 0,137 |
| N 1 | 1,5 x D | 0,5 x D | 1 x D | 300 | – | 375 | fz | 0,042 | 0,055 | 0,079 | 0,104 | 0,125 | 0,144 | 0,192 | 0,240 | 0,300 |
| 2 | 1,5 x D | 0,5 x D | 1 x D | 230 | – | 300 | fz | 0,034 | 0,044 | 0,063 | 0,083 | 0,100 | 0,115 | 0,154 | 0,192 | 0,240 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 15 | – | 30 | fz | 0,024 | 0,032 | 0,048 | 0,065 | 0,076 | 0,084 | 0,105 | 0,121 | 0,137 |
| 2 | 1,5 x D | 0,5 x D | 0,5 x D | 5 | – | 15 | fz | 0,013 | 0,018 | 0,026 | 0,034 | 0,040 | 0,045 | 0,056 | 0,065 | 0,074 |
| S 3 | 1,5 x D | 0,5 x D | 1 x D | 15 | – | 28 | fz | 0,020 | 0,026 | 0,039 | 0,052 | 0,061 | 0,067 | 0,084 | 0,097 | 0,109 |
| 4 | 1,5 x D | 0,5 x D | 0,5 x D | 15 | – | 28 | fz | 0,016 | 0,022 | 0,034 | 0,048 | 0,056 | 0,062 | 0,077 | 0,089 | 0,100 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
