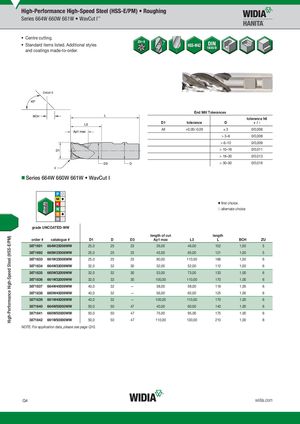

Series 664W 660W 661W WavCut I™
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
Detail X
X
Series 664W 660W 661W WavCut I
End Mill Tolerances tolerance h6
| D1 | tolerance | D | + / - |
| All | +0,05/-0,05 | ) 3 | 0/0,006 |
> 3–6 0/0,008 > 6–10 0/0,009 > 10–18 0/0,011 > 18–30 0/0,013 > 30–50 0/0,016
first choice alternate choice
grade UNCOATED-WWUNCOATED - WW length of cut length
| order # catalogue # | D1 | D | D3 | Ap1 max | L3 | L | BCH | ZU |
| 3871691 664W25008WW | 25,0 | 25 | 23 | 26,00 | 46,00 | 102 | 1,00 | 5 |
| 3871692 660W25008WW | 25,0 | 25 | 23 | 45,00 | 65,00 | 121 | 1,00 | 5 |
| 3871833 661W25008WW | 25,0 | 25 | 23 | 90,00 | 110,00 | 166 | 1,00 | 6 |
| 3871834 664W32009WW | 32,0 | 32 | 30 | 32,00 | 52,00 | 112 | 1,00 | 6 |
| 3871835 660W32009WW | 32,0 | 32 | 30 | 53,00 | 73,00 | 133 | 1,00 | 6 |
| 3871836 661W32009WW | 32,0 | 32 | 30 | 100,00 | 110,00 | 170 | 1,00 | 6 |
| 3871837 664W40009WW | 40,0 | 32 | — | 38,00 | 58,00 | 118 | 1,00 | 6 |
| 3871838 660W40009WW | 40,0 | 32 | — | 56,00 | 65,00 | 125 | 1,00 | 6 |
| 3871839 661W40009WW | 40,0 | 32 | — | 100,00 | 110,00 | 170 | 1,00 | 6 |
| 3871840 664W50000WW | 50,0 | 50 | 47 | 40,00 | 60,00 | 140 | 1,00 | 6 |
| 3871841 660W50000WW | 50,0 | 50 | 47 | 75,00 | 95,00 | 175 | 1,00 | 6 |
| 3871842 661W50000WW | 50,0 | 50 | 47 | 110,00 | 130,00 | 210 | 1,00 | 8 |
NOTE: For application data, please see page Q10.
