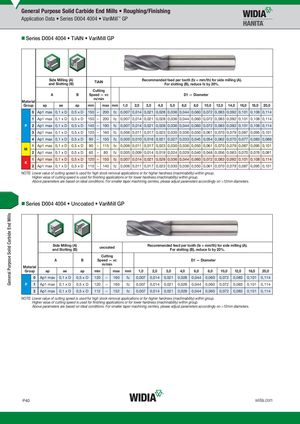

Application Data • Series D004 4004 • VariMill™ GP
- Series D004 4004 • TiAlN • VariMill GP
Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling (A). TiAlN and Slotting (B) For slotting (B), reduce fz by 20%. Cutting
A B Speed — vc D1 — Diameter
m/min Material
| Group | ae ap ap | min | max mm | 20,0 18,0 16,0 14,0 12,0 10,0 8,0 6,0 5,0 4,0 3,0 2,0 1,0 | ||||
| 0 | Ap1 max 0,1 x D | 0,5 x D | 150 – | 200 | fz | 0,007 0,014 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 | ||
| 1 | Ap1 max 0,1 x D | 0,5 x D | 150 – | 200 | fz | 0,007 0,014 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 | ||
| P | 2 | Ap1 max 0,1 x D | 0,5 x D | 140 – | 190 | fz | 0,007 0,014 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 | |
| 3 | Ap1 max 0,1 x D | 0,5 x D | 120 – | 160 | fz | 0,006 0,011 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 | ||
| 4 | Ap1 max 0,1 x D | 0,5 x D | 90 | – | 150 | fz | 0,005 0,010 0,016 0,021 0,027 0,033 0,045 0,054 0,062 0,070 0,077 0,083 0,088 | |
| 1 | Ap1 max 0,1 x D | 0,5 x D | 90 | – | 115 | fz | 0,006 0,011 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 |
M
| 2 | Ap1 max 0,1 x D | 0,5 x D | 60 | – | 80 | fz | 0,005 0,009 0,014 0,019 0,024 0,029 0,040 0,048 0,056 0,063 0,070 0,076 0,081 |
| 1 | Ap1 max 0,1 x D | 0,5 x D | 120 – | 150 | fz | 0,007 0,014 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 |
K
2 Ap1 max 0,1 x D 0,5 x D 110 – 140 fz 0,006 0,011 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
- Series D004 4004 • Uncoated • VariMill GP
Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling (A). uncoated and Slotting (B) For slotting (B), reduce fz by 20%. Cutting
A B Speed — vc D1 — Diameter
m/min Material
| Group | ap | ae | ap | min | max | mm | 1,0 | 2,0 | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| 0 | Ap1 max | 0,1 x D | 0,5 x D | 120 | – | 160 | fz | 0,007 | 0,014 | 0,021 | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 | ||
| P | 1 | Ap1 max | 0,1 x D | 0,5 x D | 120 | – | 160 | fz | 0,007 | 0,014 | 0,021 | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 | |
| 2 | Ap1 max | 0,1 x D | 0,5 x D | 112 | – | 152 | fz | 0,007 | 0,014 | 0,021 | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
