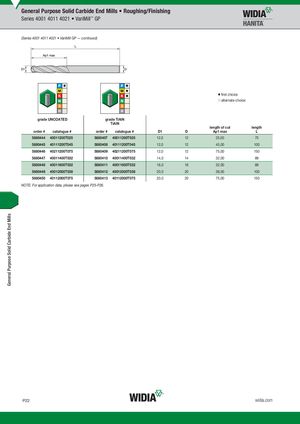

(Series 4001 4011 4021 • VariMill GP — continued)
| �first choice �alternate choice | |||||
| UNCOATED - .. grade UNCOATED order # catalogue # | TiAlN grade TiAlN TiAlN order # catalogue # | D1 | D | length of cut Ap1 max | length L |
| 5880444 40011200T025 | 5880407 40011200T025 | 12,0 | 12 | 25,00 | 75 |
| 5880445 40111200T045 | 5880408 40111200T045 | 12,0 | 12 | 45,00 | 100 |
| 5880446 40211200T075 | 5880409 40211200T075 | 12,0 | 12 | 75,00 | 150 |
| 5880447 40011400T032 | 5880410 40011400T032 | 14,0 | 14 | 32,00 | 89 |
| 5880448 40011600T032 | 5880411 40011600T032 | 16,0 | 16 | 32,00 | 89 |
| 5880449 40012000T038 | 5880412 40012000T038 | 20,0 | 20 | 38,00 | 100 |
| 5880450 40112000T075 | 5880413 40112000T075 | 20,0 | 20 | 75,00 | 150 |
NOTE: For application data, please see pages P25-P26.
