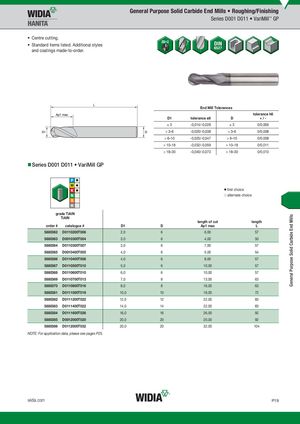

General Purpose Solid Carbide End Mills • Roughing/Finishing Series D001 D011 • VariMill™ GP • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series D001 D011 • VariMill GP ⅷ first choice ࠗ alternate choice graTdieATlNiAlN TiAlN length of cut length order # catalogue # D1 D Ap1 max L 5880362 D0110200T006 2,0 6 6,00 57 5880363 D0010300T004 3,0 6 4,00 50 5880364 D0110300T007 3,0 6 7,00 57 5880365 D0010400T005 4,0 6 5,00 54 5880366 D0110400T008 4,0 6 8,00 57 5880367 D0110500T010 5,0 6 10,00 57 5880368 D0110600T010 6,0 6 10,00 57 5880369 D0110700T013 7,0 8 13,00 63 5880370 D0110800T016 8,0 8 16,00 63 5880381 D0111000T019 10,0 10 19,00 72 5880382 D0111200T022 12,0 12 22,00 83 5880383 D0111400T022 14,0 14 22,00 83 5880384 D0111600T026 16,0 16 26,00 92 5880385 D0012000T020 20,0 20 20,00 92 5880386 D0112000T032 20,0 20 32,00 104 NOTE: For application data, please see pages P25. widia.com P19 General Purpose Solid Carbide End Mills
