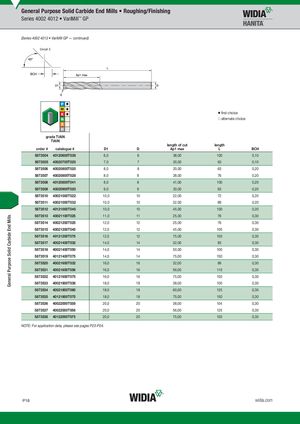

Общий каталог Widia 2017 - страница 1296
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| Detail X | ||||||
| gra | TiAlN de TiAlN TiAlN | length of cut | �first choice �alternate choice length | |||
| order # | catalogue # | D1 | D | Ap1 max | L | BCH |
| 5873504 | 40120600T038 | 6,0 | 6 | 38,00 | 100 | 0,10 |
| 5873505 | 40020700T020 | 7,0 | 7 | 20,00 | 63 | 0,10 |
| 5873506 | 40020800T020 | 8,0 | 8 | 20,00 | 63 | 0,20 |
| 5873507 | 40020800T028 | 8,0 | 8 | 28,00 | 76 | 0,20 |
| 5873508 | 40120800T041 | 8,0 | 8 | 41,00 | 100 | 0,20 |
| 5873509 | 40020900T020 | 9,0 | 9 | 20,00 | 63 | 0,20 |
| 5873510 | 40021000T022 | 10,0 | 10 | 22,00 | 72 | 0,20 |
| 5873511 | 40021000T032 | 10,0 | 10 | 32,00 | 89 | 0,20 |
| 5873512 | 40121000T045 | 10,0 | 10 | 45,00 | 100 | 0,20 |
| 5873513 | 40021100T025 | 11,0 | 11 | 25,00 | 76 | 0,30 |
| 5873514 | 40021200T025 | 12,0 | 12 | 25,00 | 76 | 0,30 |
| 5873515 | 40021200T045 | 12,0 | 12 | 45,00 | 100 | 0,30 |
| 5873516 | 40121200T075 | 12,0 | 12 | 75,00 | 150 | 0,30 |
| 5873517 | 40021400T032 | 14,0 | 14 | 32,00 | 83 | 0,30 |
| 5873518 | 40021400T050 | 14,0 | 14 | 50,00 | 100 | 0,30 |
| 5873519 | 40121400T075 | 14,0 | 14 | 75,00 | 150 | 0,30 |
| 5873520 | 40021600T032 | 16,0 | 16 | 32,00 | 89 | 0,30 |
| 5873531 | 40021600T056 | 16,0 | 16 | 56,00 | 110 | 0,30 |
| 5873532 | 40121600T075 | 16,0 | 16 | 75,00 | 150 | 0,30 |
| 5873533 | 40021800T038 | 18,0 | 18 | 38,00 | 100 | 0,30 |
| 5873534 | 40021800T060 | 18,0 | 18 | 60,00 | 125 | 0,30 |
| 5873535 | 40121800T075 | 18,0 | 18 | 75,00 | 150 | 0,30 |
| 5873536 | 40022000T038 | 20,0 | 20 | 38,00 | 104 | 0,30 |
| 5873537 | 40022000T056 | 20,0 | 20 | 56,00 | 125 | 0,30 |
| 5873538 | 40122000T075 | 20,0 | 20 | 75,00 | 150 | 0,30 |
