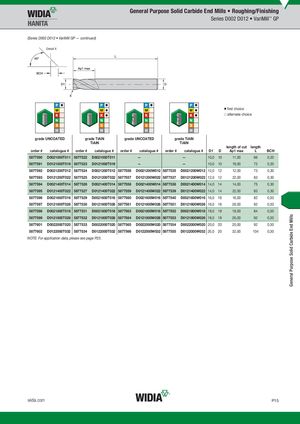

(Series D002 D012 • VariMill GP — continued)
Detail X
first choice alternate choice
grade UNCOATEDUNCOATED grade TiAlNTiAlN grade UNCOATEDUNCOATED grade TiAlNTiAlN
TiAlN TiAlN length of cut length
| order # catalogue # | order # catalogue # order # catalogue # order # catalogue # D1 | D | Ap1 max | L | BCH |
| 5877590 D0021000T011 5877522 D0021000T011 | — — 10,0 | 10 | 11,00 | 66 | 0,20 |
| 5877591 D0121000T019 5877523 D0121000T019 | — — 10,0 | 10 | 19,00 | 72 | 0,20 |
| 5877592 D0021200T012 5877524 D0021200T012 5877556 D0021200W012 5877535 D0021200W012 | 12,0 | 12 | 12,00 | 73 | 0,30 |
| 5877593 D0121200T022 5877525 D0121200T022 5877557 D0121200W022 5877537 D0121200W022 | 12,0 | 12 | 22,00 | 83 | 0,30 |
| 5877594 D0021400T014 5877526 D0021400T014 5877558 D0021400W014 5877538 D0021400W014 | 14,0 | 14 | 14,00 | 75 | 0,30 |
| 5877595 D0121400T022 5877527 D0121400T022 5877559 D0121400W022 5877539 D0121400W022 | 14,0 | 14 | 22,00 | 83 | 0,30 |
| 5877596 D0021600T016 5877529 D0021600T016 5877560 D0021600W016 5877540 D0021600W016 | 16,0 | 16 | 16,00 | 82 | 0,30 |
| 5877597 D0121600T026 5877530 D0121600T026 5877561 D0121600W026 5877551 D0121600W026 | 16,0 | 16 | 26,00 | 92 | 0,30 |
| 5877598 D0021800T018 5877531 D0021800T018 5877563 D0021800W018 5877552 D0021800W018 | 18,0 | 18 | 18,00 | 84 | 0,30 |
| 5877599 D0121800T026 5877532 D0121800T026 5877564 D0121800W026 5877553 D0121800W026 | 18,0 | 18 | 26,00 | 92 | 0,30 |
| 5877601 D0022000T020 5877533 D0022000T020 5877565 D0022000W020 5877554 D0022000W020 | 20,0 | 20 | 20,00 | 92 | 0,30 |
| 5877602 D0122000T032 5877534 D0122000T032 5877566 D0122000W032 5877555 D0122000W032 | 20,0 | 20 | 32,00 | 104 | 0,30 |
NOTE: For application data, please see page P23.
