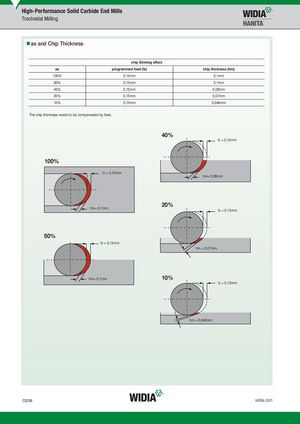

„ ae and Chip Thickness

chip thinning effect

ae programmed feed (fz) chip thickness (hm)

100%0,15mm0,1mm
50%0,15mm0,1mm
40%0,15mm0,09mm
20%0,15mm0,07mm
10%0,15mm0,046mm

The chip thickness needs to be compensated by feed.

40%

fz = 0,15mm

100%

fz = 0,15mm hm= 0,09mm

20%

hm= 0,1mm fz = 0,15mm

50%

fz = 0,15mm hm = 0,07mm

10%

hm= 0,1mm fz = 0,15mm

hm = 0,046mm
