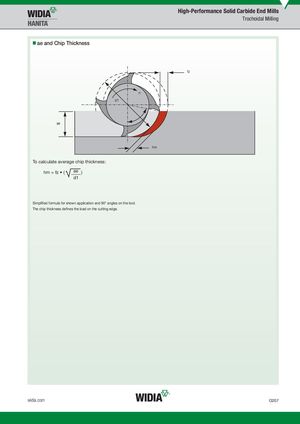

High-Performance Solid Carbide End Mills
Trochoidal Milling
ae and Chip Thickness
fz
n
d1
ae
hm
To calculate average chip thickness:
hm = fz • ( ae )
d1
Simplified formula for shown application and 90° angles on the tool.
The chip thickness defines the load on the cutting edge.
widia.com O207
