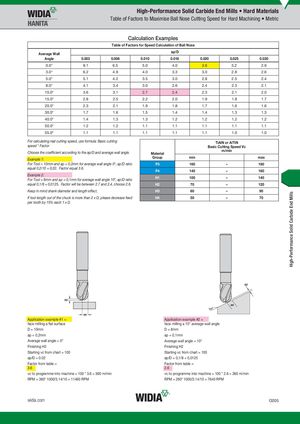

Table of Factors to Maximise Ball Nose Cutting Speed for Hard Machining • Metric
Calculation Examples
Table of Factors for Speed Calculation of Ball Nose ap/D Average Wall
| Angle | 0.003 | 0.006 | 0.010 | 0.016 | 0.020 | 0.025 | 0.030 |
| 0.0° | 9.1 | 6.5 | 5.0 | 4.0 | 3.6 | 3.2 | 2.9 |
| 3.0° | 6.2 | 4.9 | 4.0 | 3.3 | 3.0 | 2.8 | 2.6 |
| 5.0° | 5.1 | 4.2 | 3.5 | 3.0 | 2.8 | 2.5 | 2.4 |
| 8.0° | 4.1 | 3.4 | 3.0 | 2.6 | 2.4 | 2.3 | 2.1 |
| 10.0° | 3.6 | 3.1 | 2.7 | 2.4 | 2.3 | 2.1 | 2.0 |
| 15.0° | 2.8 | 2.5 | 2.2 | 2.0 | 1.9 | 1.8 | 1.7 |
| 20.0° | 2.3 | 2.1 | 1.9 | 1.8 | 1.7 | 1.6 | 1.6 |
| 30.0° | 1.7 | 1.6 | 1.5 | 1.4 | 1.4 | 1.3 | 1.3 |
| 40.0° | 1.4 | 1.3 | 1.3 | 1.2 | 1.2 | 1.2 | 1.2 |
| 50.0° | 1.2 | 1.2 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| 55.0° | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.0 | 1.0 |
For calculating real cutting speed, use formula: Basic cutting TiAlN or AlTiN speed * Factor Basic Cutting Speed Vc m/min Choose the coefficient according to the ap/D and average wall angle. Material
Group min max
Example 1:
For Tool = 10mm and ap = 0,2mm for average wall angle 0°, ap/D ratio P3 160 – 180
equal 0,2/10 = 0,02. Factor equal 3.6.
P4 140 – 160
Example 2:
H1 100 – 140
For Tool = 8mm and ap = 0,1mm for average wall angle 10°, ap/D ratio
| equal 0,1/8 = 0,0125. Factor will be between 2.7 and 2.4, choose 2.6. | H2 | 70 | – | 120 |
| Keep in mind shank diameter and length effect. | H3 | 60 | – | 90 |
| If tool length out of the chuck is more than 2 x D, please decrease feed | H4 | 50 | – | 70 |
per tooth by 15% each 1 x D.
Application example #1 = Application example #2 = face milling a flat surface face milling a 10° average wall angle D = 10mm D = 8mm ap = 0,2mm ap = 0,1mm Average wall angle = 0° Average wall angle = 10° Finishing H2 Finishing H2 Starting vc from chart = 100 Starting vc from chart = 100 ap/D = 0.02 ap/D = 0,1/8 = 0,0125 Factor from table = Factor from table = 3.6 2.6 vc to programme into machine = 100 * 3.6 = 360 m/min vc to programme into machine = 100 * 2.6 = 260 m/min RPM = 360* 1000/3.14/10 = 11460 RPM RPM = 260* 1000/3.14/10 = 7640 RPM
