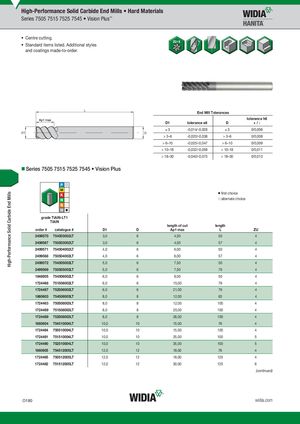

Series 7505 7515 7525 7545 Vision Plus™
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
L End Mill Tolerances
| D1 | tolerance e8 | D | tolerance h6 + / - |
| �3 | -0,014/-0,028 | �3 | 0/0,006 |
| > 3–6 | -0,020/-0,038 | > 3–6 | 0/0,008 |
| > 6–10 | -0,025/-0,047 | > 6–10 | 0/0,009 |
| > 10–18 | -0,032/-0,059 | > 10–18 | 0/0,011 |
| > 18–30 | -0,040/-0,073 | > 18–30 | 0/0,013 |
D1 D
Series 7505 7515 7525 7545 Vision Plus
first choice alternate choice
grade TiAlN-LT1TiAlN - LT1 TiAlN
| TiAlN - LT1 grade TiAlN-LT1 TiAlN order # catalogue # | D1 | D | length of cut Ap1 max | length L | ZU |
| 2499570 754503002LT | 3,0 | 6 | 4,50 | 50 | 4 |
| 2499567 750503002LT | 3,0 | 6 | 4,50 | 57 | 4 |
| 2499571 754504002LT | 4,0 | 6 | 6,00 | 50 | 4 |
| 2499568 750504002LT | 4,0 | 6 | 6,00 | 57 | 4 |
| 2499572 754505002LT | 5,0 | 6 | 7,50 | 50 | 4 |
| 2499569 750505002LT | 5,0 | 6 | 7,50 | 76 | 4 |
| 1848805 754506002LT | 6,0 | 6 | 9,00 | 50 | 4 |
| 1724468 751506002LT | 6,0 | 6 | 15,00 | 76 | 4 |
| 1724487 752506002LT | 6,0 | 6 | 21,00 | 76 | 4 |
| 1860603 754508003LT | 8,0 | 8 | 12,00 | 63 | 4 |
| 1724463 750508003LT | 8,0 | 8 | 12,00 | 100 | 4 |
| 1724469 751508003LT | 8,0 | 8 | 20,00 | 100 | 4 |
| 1724489 752508003LT | 8,0 | 8 | 28,00 | 100 | 4 |
| 1860604 754510004LT | 10,0 | 10 | 15,00 | 76 | 4 |
| 1724464 750510004LT | 10,0 | 10 | 15,00 | 100 | 4 |
| 1724481 751510004LT | 10,0 | 10 | 25,00 | 100 | 5 |
| 1724490 752510004LT | 10,0 | 10 | 35,00 | 100 | 5 |
| 1860605 754512005LT | 12,0 | 12 | 18,00 | 76 | 4 |
| 1724465 750512005LT | 12,0 | 12 | 18,00 | 125 | 4 |
| 1724482 751512005LT | 12,0 | 12 | 30,00 | 125 | 6 |
