- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
| End Mill Tol | erances | |||
| D1 | tolerance h10 + / - | D | tolerance h6 + / - | |
| �3 | 0/0,040 | �3 | 0/0,006 | |
| > 3–6 | 0/0,048 | > 3–6 | 0/0,008 | |
| Diameter 4mm | > 6–10 | 0/0,058 | > 6–10 | 0/0,009 |
| > 10–18 | 0/0,070 | > 10–18 | 0/0,011 | |
| > 18–30 | 0/0,084 | > 18–30 | 0/0,013 |

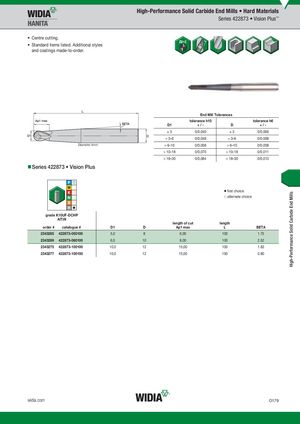

Series 422873 Vision Plus
first choice alternate choice
grade K10UF-DCHPK10UF-DCHP AlTiN
| K10UF-DCHP grade K10UF-DCHP AlTiN order # catalogue # | D1 | D | length of cut Ap1 max | length L | BETA |
| 2343265 422873-050100 | 5,0 | 8 | 6,00 | 100 | 1.75 |
| 2343269 422873-060100 | 6,0 | 10 | 8,00 | 100 | 2.52 |
| 2343275 422873-100100 | 10,0 | 12 | 15,00 | 100 | 1.83 |
| 2343277 422873-100150 | 10,0 | 12 | 15,00 | 150 | 0.80 |
