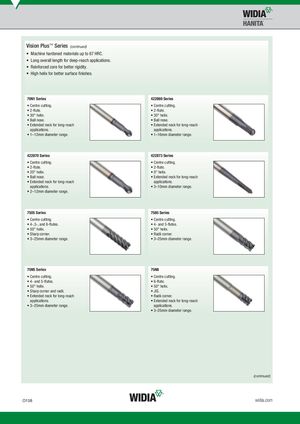

Общий каталог Widia 2017 - страница 1218

Vision Plus™ Series

(continued)

• Machine hardened materials up to 67 HRC.
• Long overall length for deep-reach applications.
• Reinforced core for better rigidity.
• High helix for better surface fi nishes.

70N1 Series 422869 Series

• Centre cutting.
• Centre cutting.
• 2-fl ute.
• 2-fl ute.
• 30° helix.
• 30° helix.
• Ball nose.
• Ball nose.
• Extended neck for long-reach
• Extended neck for long-reach

applications. applications.

• 1–12mm diameter range.
• 1–16mm diameter range.

422870 Series 422873 Series

• Centre cutting.
• Centre cutting.
• 2-fl ute.
• 2-fl ute.
• 20° helix.
• 0° helix.
• Ball nose.
• Extended neck for long-reach
• Extended neck for long-reach applications. applications. 3–10mm diameter range.
• 2–12mm diameter range.

7505 Series 7585 Series

• Centre cutting.
• Centre cutting.
• 4-,5-, and 6-fl utes.
• 4- and 5-fl utes.
• 50° helix.
• 50° helix.
• Sharp corner.
• Radii corner.
• 3–25mm diameter range.
• 3–25mm diameter range.

75N5 Series 75N8

• Centre cutting.
• Centre cutting.
• 4- and 5-fl utes.
• 6-fl ute.
• 50° helix.
• 50° helix.
• Sharp corner and radii.
• JIS.
• Extended neck for long-reach
• Radii corner.

applications. Extended neck for long-reach

• 3–25mm diameter range. applications.
• 3–25mm diameter range.

(continued)
