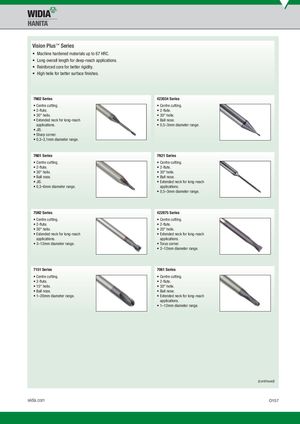

Общий каталог Widia 2017 - страница 1217

Vision Plus™ Series

• Machine hardened materials up to 67 HRC.
• Long overall length for deep-reach applications.
• Reinforced core for better rigidity.
• High helix for better surface fi nishes.

7N02 Series 423034 Series

• Centre cutting.
• Centre cutting.
• 2-fl ute.
• 2-fl ute.
• 30° helix.
• 30° helix.
• Extended neck for long-reach
• Ball nose.

applications. 0,5–3mm diameter range.

• JIS.
• Sharp corner.
• 0,3–3,1mm diameter range.

7N01 Series 7N21 Series

• Centre cutting.
• Centre cutting.
• 2-fl ute.
• 2-fl ute.
• 30° helix.
• 30° helix.
• Ball nose.
• Ball nose.
• JIS.
• Extended neck for long-reach
• 0,3–6mm diameter range. applications.
• 0,5–3mm diameter range.

75N2 Series 422875 Series

• Centre cutting.
• Centre cutting.
• 2-fl ute.
• 2-fl ute.
• 30° helix.
• 20° helix.
• Extended neck for long-reach
• Extended neck for long-reach

applications. applications.

• 3–12mm diameter range.
• Torus corner.
• 2–12mm diameter range.

7151 Series 7061 Series

• Centre cutting.
• Centre cutting.
• 2-fl ute.
• 2-fl ute.
• 15° helix.
• 30° helix.
• Ball nose.
• Ball nose.
• 1–20mm diameter range.
• Extended neck for long-reach

applications.

• 1–12mm diameter range.

(continued)
