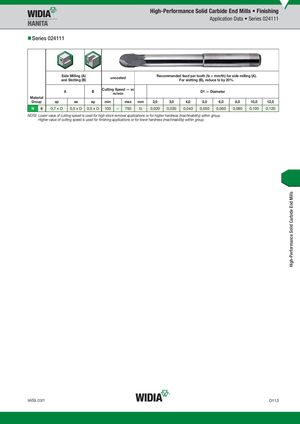

Series 024111
| Sid and | e Milling (A Slotting (B | ) ) | uncoat | ed | Rec | ommende | d feed per For slottin | tooth (fz = g (B), redu | mm/th) fo ce fz by 20 | r side mill %. | ing (A). | |||
| Material | A | B | Cutting Spe m/mi | ed — vc n | D1 — D | iameter | ||||||||
| Group | ap | ae | ap | min | max | mm | 2,0 | 3,0 | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 |
| N 6 | 0,7 x D | 0,5 x D | 0,5 x D | 100 – | 750 | fz | 0,020 | 0,030 | 0,040 | 0,050 | 0,060 | 0,080 | 0,100 | 0,120 |
N 6 0,7 x D 0,5 x D 0,5 x D 100 – 750 fz 0,020 0,030 0,040 0,050 0,060 0,080 0,100 0,120
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group.
