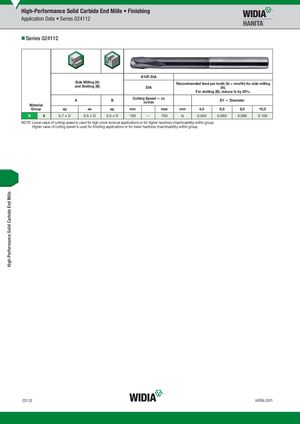

Series 024112
K10F-DIA Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling
| and Slotting (B) | DIA | (A). |
| For slotting (B), reduce fz by 20%. | ||
| Cutting Speed — vc | ||
| A | B | D1 — Diameter |
| m/min | ||
| Material |
| Group | ap | ae | ap | min | max | mm | 4,0 | 6,0 | 8,0 | 10,0 | ||
| N | 6 | 0,7 x D | 0,5 x D | 0,5 x D | 100 | – | 750 | fz | 0,040 | 0,060 | 0,080 | 0,100 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group.
