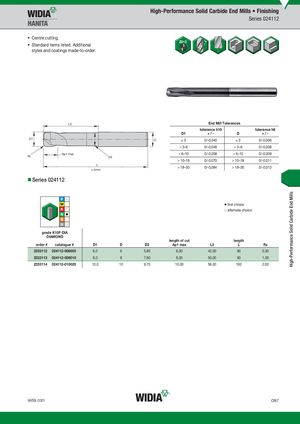

- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
| End Mill Tol | erances | ||
| D1 | tolerance h10 + / - | D | tolerance h6 + / - |
| �3 | 0/-0,040 | �3 | 0/-0,006 |
| > 3–6 | 0/-0,048 | > 3–6 | 0/-0,008 |
| > 6–10 | 0/-0,058 | > 6–10 | 0/-0,009 |
| > 10–18 | 0/-0,070 | > 10–18 | 0/-0,011 |
| > 18–30 | 0/-0,084 | > 18–30 | 0/-0,013 |
Rε D3
L * 5mm
| �Series 024112 | |||||||
| K10F-DIA grade K10F-DIA DIAMOND order # catalogue # | D1 | D | D3 | length of cut Ap1 max | L3 | length L �first choice �alternate choice | R � |
| 2333112 024112-006005 | 6,0 | 6 | 5,80 | 6,00 | 42,00 | 80 | 0,50 |
| 2333113 024112-008010 | 8,0 | 8 | 7,80 | 8,00 | 50,00 | 90 | 1,00 |
| 2333114 024112-010020 | 10,0 | 10 | 9,70 | 10,00 | 56,00 | 100 | 2,00 |
