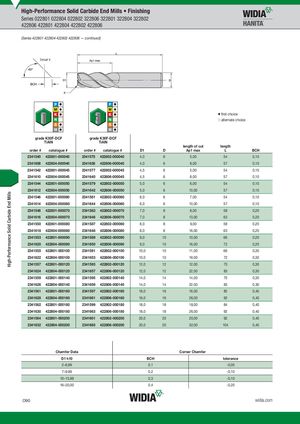

422806 422801 422804 422802 422806
(Series 422801 422804 422802 422806 — continued)
| Detail X | ||||||
| �first choice �alternate choice | ||||||
| K30F-DCF grade K30F-DCF TiAlN | K30F-DCF grade K30F-DCF TiAlN | length of cut | length | |||
| order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | BCH |
| 2341540 422801-000040 | 2341575 422802-000040 | 4,0 | 6 | 5,00 | 54 | 0,10 |
| 2341608 422804-000040 | 2341638 422806-000040 | 4,0 | 6 | 8,00 | 57 | 0,10 |
| 2341542 422801-000045 | 2341577 422802-000045 | 4,5 | 6 | 5,00 | 54 | 0,10 |
| 2341610 422804-000045 | 2341640 422806-000045 | 4,5 | 6 | 8,00 | 57 | 0,10 |
| 2341544 422801-000050 | 2341579 422802-000050 | 5,0 | 6 | 6,00 | 54 | 0,10 |
| 2341612 422804-000050 | 2341642 422806-000050 | 5,0 | 6 | 10,00 | 57 | 0,10 |
| 2341546 422801-000060 | 2341581 422802-000060 | 6,0 | 6 | 7,00 | 54 | 0,10 |
| 2341614 422804-000060 | 2341644 422806-000060 | 6,0 | 6 | 10,00 | 57 | 0,10 |
| 2341548 422801-000070 | 2341583 422802-000070 | 7,0 | 8 | 8,00 | 58 | 0,20 |
| 2341616 422804-000070 | 2341646 422806-000070 | 7,0 | 8 | 13,00 | 63 | 0,20 |
| 2341550 422801-000080 | 2341587 422802-000080 | 8,0 | 8 | 9,00 | 58 | 0,20 |
| 2341618 422804-000080 | 2341648 422806-000080 | 8,0 | 8 | 16,00 | 63 | 0,20 |
| 2341553 422801-000090 | 2341589 422802-000090 | 9,0 | 10 | 10,00 | 66 | 0,20 |
| 2341620 422804-000090 | 2341650 422806-000090 | 9,0 | 10 | 16,00 | 72 | 0,20 |
| 2341555 422801-000100 | 2341591 422802-000100 | 10,0 | 10 | 11,00 | 66 | 0,30 |
| 2341622 422804-000100 | 2341653 422806-000100 | 10,0 | 10 | 19,00 | 72 | 0,30 |
| 2341557 422801-000120 | 2341593 422802-000120 | 12,0 | 12 | 12,00 | 73 | 0,30 |
| 2341624 422804-000120 | 2341657 422806-000120 | 12,0 | 12 | 22,00 | 83 | 0,30 |
| 2341559 422801-000140 | 2341595 422802-000140 | 14,0 | 14 | 14,00 | 75 | 0,30 |
| 2341626 422804-000140 | 2341659 422806-000140 | 14,0 | 14 | 22,00 | 83 | 0,30 |
| 2341561 422801-000160 | 2341597 422802-000160 | 16,0 | 16 | 16,00 | 82 | 0,40 |
| 2341628 422804-000160 | 2341661 422806-000160 | 16,0 | 16 | 26,00 | 92 | 0,40 |
| 2341562 422801-000180 | 2341599 422802-000180 | 18,0 | 18 | 18,00 | 84 | 0,40 |
| 2341630 422804-000180 | 2341663 422806-000180 | 18,0 | 18 | 26,00 | 92 | 0,40 |
| 2341564 422801-000200 | 2341601 422802-000200 | 20,0 | 20 | 20,00 | 92 | 0,40 |
| 2341632 422804-000200 | 2341665 422806-000200 | 20,0 | 20 | 32,00 | 104 | 0,40 |
Chamfer Data Corner Chamfer
| D1 h10 | BCH | tolerance |
| 2–6,99 | 0,1 | -0,05 |
| Chamfer Data | Corner Chamfer | |
| D1 h10 | BCH | tolerance |
| 2–6,99 | 0,1 | -0,05 |
| 7–9,99 | 0,2 | -0,10 |
| 10–15,99 | 0,3 | -0,10 |
| 16–20,00 | 0,4 | -0,20 |
