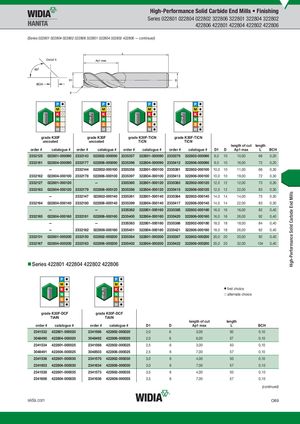

Общий каталог Widia 2017 - страница 1149
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
422806 422801 422804 422802 422806
(Series 022801 022804 022802 322806 322801 322804 322802 422806 — continued)
Detail X
| K30F grade K30F uncoated gr u | K30F K ade K30F ncoated grad | 30F-TICN e K30F-TiCN TiCN | K30F-TICN grade K30F-TiCN TiCN | lthft | lth | |||
| order # catalogue # order # | catalogue # order # | catalogue # | order # catalogue # | D1 | D | eng o cu Ap1 max | eng L | BCH |
| 2332125 022801-000090 2332143 | 022802-000090 2335357 | 322801-000090 | 2335379 322802-000090 | 9,0 | 10 | 10,00 | 66 | 0,20 |
| 2332161 022804-000090 2332177 | 022806-000090 2335396 | 322804-000090 | 2335412 322806-000090 | 9,0 | 10 | 16,00 | 72 | 0,20 |
| — 2332144 | 022802-000100 2335358 | 322801-000100 | 2335381 322802-000100 | 10,0 | 10 | 11,00 | 66 | 0,30 |
| 2332162 022804-000100 2332178 | 022806-000100 2335397 | 322804-000100 | 2335413 322806-000100 | 10,0 | 10 | 19,00 | 72 | 0,30 |
| 2332127 022801-000120 | — 2335360 | 322801-000120 | 2335383 322802-000120 | 12,0 | 12 | 12,00 | 73 | 0,30 |
| 2332163 022804-000120 2332179 | 022806-000120 2335398 | 322804-000120 | 2335415 322806-000120 | 12,0 | 12 | 22,00 | 83 | 0,30 |
| — 2332147 | 022802-000140 2335361 | 322801-000140 | 2335384 322802-000140 | 14,0 | 14 | 14,00 | 75 | 0,30 |
| 2332164 022804-000140 2332180 | 022806-000140 2335399 | 322804-000140 | 2335417 322806-000140 | 14,0 | 14 | 22,00 | 83 | 0,30 |
| — | — 2335362 | 322801-000160 | 2335385 322802-000160 | 16,0 | 16 | 16,00 | 82 | 0,40 |
| 2332165 022804-000160 2332181 | 022806-000160 2335400 | 322804-000160 | 2335420 322806-000160 | 16,0 | 16 | 26,00 | 92 | 0,40 |
| — | — 2335363 | 322801-000180 | 2335386 322802-000180 | 18,0 | 18 | 18,00 | 84 | 0,40 |
| — 2332182 | 022806-000180 2335401 | 322804-000180 | 2335421 322806-000180 | 18,0 | 18 | 26,00 | 92 | 0,40 |
| 2332131 022801-000200 2332150 | 022802-000200 2335364 | 322801-000200 | 2335387 322802-000200 | 20,0 | 20 | 20,00 | 92 | 0,40 |
| 2332167 022804-000200 2332183 | 022806-000200 2335402 | 322804-000200 | 2335422 322806-000200 | 20,0 | 20 | 32,00 | 104 | 0,40 |
Series 422801 422804 422802 422806
first choice alternate choice
grade K30F-DCFK30F-DCF grade K30F-DCFK30F-DCF TiAlN TiAlN length of cut length
order # catalogue # order # catalogue # D1 D Ap1 max L BCH
| K30F-DCF grade K30F-DCF TiAlN order # catalogue # | K30F-DCF grade K30F-DCF TiAlN order # catalogue # | D1 | D | length of cut Ap1 max | length L | BCH |
| 2341532 422801-000020 | 2341566 422802-000020 | 2,0 | 6 | 3,00 | 50 | 0,10 |
| 3048490 422804-000020 | 3048492 422806-000020 | 2,0 | 6 | 6,00 | 57 | 0,10 |
| 2341534 422801-000025 | 2341568 422802-000025 | 2,5 | 6 | 3,00 | 50 | 0,10 |
| 3048491 422804-000025 | 3048503 422806-000025 | 2,5 | 6 | 7,00 | 57 | 0,10 |
| 2341536 422801-000030 | 2341570 422802-000030 | 3,0 | 6 | 4,00 | 50 | 0,10 |
| 2341603 422804-000030 | 2341634 422806-000030 | 3,0 | 6 | 7,00 | 57 | 0,10 |
| 2341538 422801-000035 | 2341573 422802-000035 | 3,5 | 6 | 4,00 | 50 | 0,10 |
| 2341606 422804-000035 | 2341636 422806-000035 | 3,5 | 6 | 7,00 | 57 | 0,10 |
