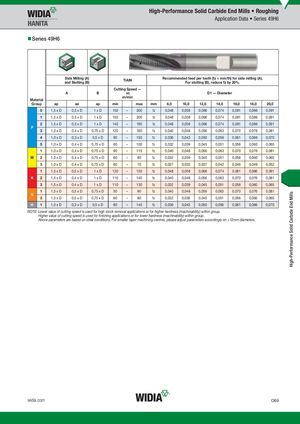

Application Data • Series 49H6
Series 49H6
| S a | ide Milling ( nd Slotting ( | A) B) | TiAlN | Recomm | ended fee For sl | d per tooth otting (B), | (fz = mm/ reduce fz | th) for side by 20%. | milling (A | ). | ||||
| Material | A | B | Cutti | ng Sp vc m/mi | eed — n | D1 | — Diame | ter | ||||||
| Group | ap | ae | ap | min | max | mm | 8,0 | 10,0 | 12,0 | 14,0 | 16,0 | 18,0 | 20,0 | |
| 0 | 1,5 x D | 0,5 x D | 1 x D | 150 | – | 200 | fz | 0,048 | 0,058 | 0,066 | 0,074 | 0,081 | 0,086 | 0,091 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 150 | – | 200 | fz | 0,048 | 0,058 | 0,066 | 0,074 | 0,081 | 0,086 | 0,091 |
| 2 | 1,5 x D | 0,5 x D | 1 x D | 140 | – | 190 | fz | 0,048 | 0,058 | 0,066 | 0,074 | 0,081 | 0,086 | 0,091 |
| P 3 | 1,0 x D | 0,4 x D | 0,75 x D | 120 | – | 160 | fz | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 |
| 4 | 1,0 x D | 0,3 x D | 0,5 x D | 90 | – | 150 | fz | 0,036 | 0,043 | 0,050 | 0,056 | 0,061 | 0,066 | 0,070 |
| 5 | 1,0 x D | 0,4 x D | 0,75 x D | 60 | – | 100 | fz | 0,032 | 0,039 | 0,045 | 0,051 | 0,056 | 0,060 | 0,065 |
| 1 | 1,0 x D | 0,4 x D | 0,75 x D | 90 | – | 115 | fz | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 |
| M 2 | 1,0 x D | 0,4 x D | 0,75 x D | 60 | – | 80 | fz | 0,032 | 0,039 | 0,045 | 0,051 | 0,056 | 0,060 | 0,065 |
| 3 | 1,0 x D | 0,4 x D | 0,75 x D | 60 | – | 70 | fz | 0,027 | 0,032 | 0,037 | 0,042 | 0,046 | 0,049 | 0,052 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 120 | – | 150 | fz | 0,048 | 0,058 | 0,066 | 0,074 | 0,081 | 0,086 | 0,091 |
| K 2 | 1,5 x D | 0,4 x D | 1 x D | 110 | – | 140 | fz | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 |
| 3 | 1,5 x D | 0,4 x D | 1 x D | 110 | – | 130 | fz | 0,032 | 0,039 | 0,045 | 0,051 | 0,056 | 0,060 | 0,065 |
| 1 | 1,5 x D | 0,5 x D | 0,75 x D | 50 | – | 90 | fz | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 |
| S 3 | 1,5 x D | 0,5 x D | 0,75 x D | 60 | – | 80 | fz | 0,032 | 0,039 | 0,045 | 0,051 | 0,056 | 0,060 | 0,065 |
| H 1 | 1,0 x D | 0,3 x D | 0,5 x D | 80 | – | 140 | fz | 0,036 | 0,043 | 0,050 | 0,056 | 0,061 | 0,066 | 0,070 |
Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
