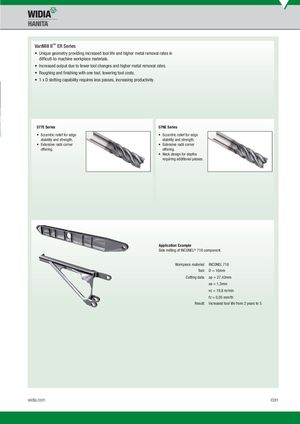

VariMill II™ ER Series
- Unique geometry providing increased tool life and higher metal removal rates in diffi cult-to-machine workpiece materials.
- Increased output due to fewer tool changes and higher metal removal rates.
- Roughing and fi nishing with one tool, lowering tool costs.
- 1 x D slotting capability requires less passes, increasing productivity.
577E Series 57NE Series
- Eccentric relief for edge
- Eccentric relief for edge
stability and strength. stability and strength.
- Extensive radii corner
- Extensive radii corner
offering. offering.
- Neck design for depths requiring additional passes.
Application Example Side milling of INCONEL® 718 component.
| Workpiece material: | INCONEL 718 |
| Tool: | D = 16mm |
| Cutting data: | ap = 27,43mm |
| ae = 1,3mm | |
| vc = 19,8 m/min | |
| fz = 0,05 mm/th | |
| Result: | Increased tool life from 2 years to 5. |
