High-Performance Solid Carbide End Mills

VariMill II™ ER

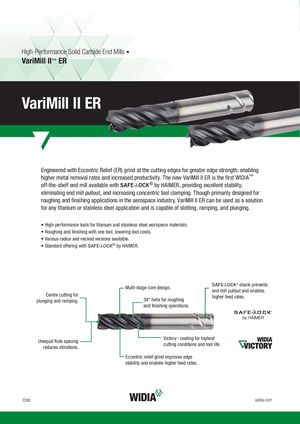

VariMill II ER

Engineered with Eccentric Relief (ER) grind at the cutting edges for greater edge strength, enabling

higher metal removal rates and increased productivity. The new VariMill II ER is the fi rst WIDIA™

off-the-shelf end mill available with SAFE-hOCK® by HAIMER, providing excellent stability,

eliminating end mill pullout, and increasing concentric tool clamping. Though primarily designed for

roughing and fi nishing applications in the aerospace industry, VariMill II ER can be used as a solution

for any titanium or stainless steel application and is capable of slotting, ramping, and plunging.

• High-performance tools for titanium and stainless steel workpiece materials.
• Roughing and fi nishing with one tool, lowering tool costs.
• Various radius and necked versions available.
• Standard offering with SAFE-hOCK® by HAIMER .

Multi-stage core design. Centre cutting for plunging and ramping. 38° helix for roughing and fi nishing operations.

SAFE-hOCK shank prevents end mill pullout and enables higher feed rates.

Unequal fl ute spacing reduces vibrations.

Victory™ coating for highest cutting conditions and tool life. Eccentric relief grind improves edge stability and enables higher feed rates.
