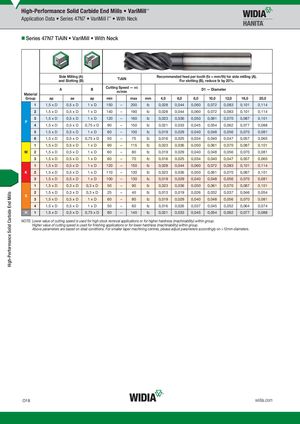

Series 47N7 TiAlN • VariMill • With Neck
| Sid an | e Milling (A d Slotting (B | ) ) | TiAlN | Recomm | ended fee For s | d per toot lotting (B), | h (fz = mm reduce fz | /th) for sid by 20%. | e milling ( | A). | ||||
| A | B | Cuttin | g Spee m/min | d — vc | D | 1 — Diam | eter | |||||||
| Material | ||||||||||||||
| Group | ap | ae | ap | min | max | mm | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 150 | – | 200 | fz | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 |
| 2 | 1,5 x D | 0,5 x D | 1 x D | 140 | – | 190 | fz | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 |
| P 3 | 1,5 x D | 0,5 x D | 1 x D | 120 | – | 160 | fz | 0,023 | 0,036 | 0,050 | 0,061 | 0,070 | 0,087 | 0,101 |
| 4 | 1,5 x D | 0,5 x D | 0,75 x D | 90 | – | 150 | fz | 0,021 | 0,033 | 0,045 | 0,054 | 0,062 | 0,077 | 0,088 |
| 5 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 100 | fz | 0,019 | 0,029 | 0,040 | 0,048 | 0,056 | 0,070 | 0,081 |
| 6 | 1,5 x D | 0,5 x D | 0,75 x D | 50 | – | 75 | fz | 0,016 | 0,025 | 0,034 | 0,040 | 0,047 | 0,057 | 0,065 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 90 | – | 115 | fz | 0,023 | 0,036 | 0,050 | 0,061 | 0,070 | 0,087 | 0,101 |
| M 2 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,019 | 0,029 | 0,040 | 0,048 | 0,056 | 0,070 | 0,081 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 70 | fz | 0,016 | 0,025 | 0,034 | 0,040 | 0,047 | 0,057 | 0,065 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 120 | – | 150 | fz | 0,028 | 0,044 | 0,060 | 0,072 | 0,083 | 0,101 | 0,114 |
| K 2 | 1,5 x D | 0,5 x D | 1 x D | 110 | – | 130 | fz | 0,023 | 0,036 | 0,050 | 0,061 | 0,070 | 0,087 | 0,101 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 100 | – | 130 | fz | 0,019 | 0,029 | 0,040 | 0,048 | 0,056 | 0,070 | 0,081 |
| 1 | 1,5 x D | 0,3 x D | 0,3 x D | 50 | – | 90 | fz | 0,023 | 0,036 | 0,050 | 0,061 | 0,070 | 0,087 | 0,101 |
| 2 | 1,5 x D | 0,3 x D | 0,3 x D | 25 | – | 40 | fz | 0,013 | 0,019 | 0,026 | 0,032 | 0,037 | 0,046 | 0,054 |
| S 3 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,019 | 0,029 | 0,040 | 0,048 | 0,056 | 0,070 | 0,081 |
| 4 | 1,5 x D | 0,5 x D | 1 x D | 50 | – | 60 | fz | 0,016 | 0,026 | 0,037 | 0,045 | 0,052 | 0,064 | 0,074 |
| H 1 | 1,5 x D | 0,5 x D | 0,75 x D | 80 | – | 140 | fz | 0,021 | 0,033 | 0,045 | 0,054 | 0,062 | 0,077 | 0,088 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
