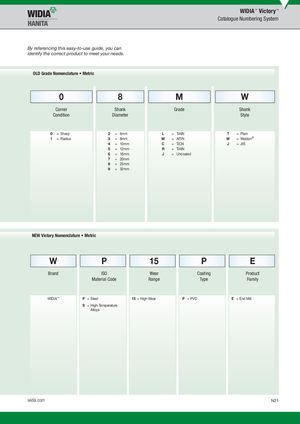

WIDIA™ Victory™
By referencing this easy-to-use guide, you can
identify the correct product to meet your needs.
OLD Grade Nomenclature • Metric
| 0 | 8 | M | W |
| Corner | Shank | Grade | Shank |
Condition Diameter Style
| 0 | = Sharp | 2 | = 6mm | L | = TiAlN | T | = Plain |
| 1 | = Radius | 3 | = 8mm | M | = AlTiN | W | = Weldon® |
| 4 | = 10mm | C | = TiCN | J | = JIS | ||
| 5 | = 12mm | R | = TiAlN | ||||
| 6 | = 16mm | J | = Uncoated |
7 = 20mm 8 = 25mm 9 = 32mm
NEW Victory Nomenclature • Metric
| W | P | 15 | P | E | ||
| Brand | ISO | Wear | Coating | Product | ||
| Material Code | Range | Type | Family |
WIDIA™ P = Steel 15 = High Wear P = PVD E = End Mill
S = High-Temperature Alloys
