WIDIA™ Victory™

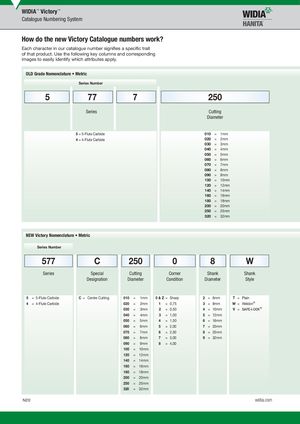

How do the new Victory Catalogue numbers work?
Each character in our catalogue number signifi es a specifi c trait
of that product. Use the following key columns and corresponding
images to easily identify which attributes apply.
OLD Grade Nomenclature • Metric
Series Number
5 77 7 250
Series Cutting
Diameter
| 5 = 5-Flute Carbide 010 | = | 1mm |
| 4 = 4-Flute Carbide 020 | = | 2mm |
| 030 | = | 3mm |
| 040 | = | 4mm |
| 050 | = | 5mm |
| 060 | = | 6mm |
| 070 | = | 7mm |
| 080 | = | 8mm |
| 090 | = | 9mm |
| 100 | = | 10mm |
| 120 | = | 12mm |
| 140 | = | 14mm |
| 160 | = | 16mm |
| 180 | = | 18mm |
| 200 | = | 20mm |
| 250 | = | 25mm |
| 320 | = | 32mm |
NEW Victory Nomenclature • Metric
Series Number
| 577 | C | 250 | 0 | 8 | W | |||
| Series | Special | Cutting | Corner | Shank | Shank | |||
| Designation | Diameter | Condition | Diameter | Style |
| C = Centre Cutting = 5-Flute Carbide 5 010 | = | 1mm | 0 & Z = Sharp | 2 | = Plain T = 6mm | |
| = 4-Flute Carbide 4 020 | = | 2mm | 1 | = 0,75 | 3 | W = Weldon® = 8mm |
| 030 | = | 3mm | 2 | = 0,50 | 4 | SAFE-hOCK® = V = 10mm |
| 040 | = | 4mm | 3 | = 1,00 | 5 | = 12mm |
| 050 | = | 5mm | 4 | = 1,50 | 6 | = 16mm |
| 060 | = | 6mm | 5 | = 2,00 | 7 | = 20mm |
| 070 | = | 7mm | 6 | = 2,50 | 8 | = 25mm |
| 080 | = | 8mm | 7 | = 3,00 | 9 | = 32mm |
| 090 | = | 9mm | 8 | = 4,00 | ||
| 100 | = | 10mm | ||||
| 120 | = | 12mm | ||||
| 140 | = | 14mm | ||||
| 160 | = | 16mm | ||||
| 180 | = | 18mm | ||||
| 200 | = | 20mm | ||||
| 250 | = | 25mm | ||||
| 320 | = | 32mm |
