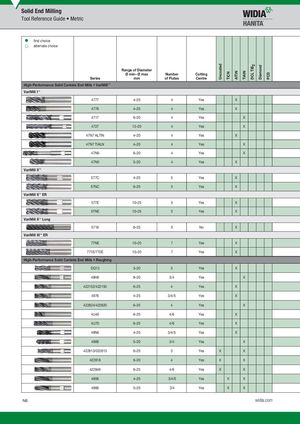

| � � first choice alternate choice HihPf Slid Cbid | Series Ed Mill • ViMill™ | Range of Diameter Ø min– Ø max mm | Number of Flutes | Cutting Centre | Uncoated TiCN AlTiN | TiAlN | DCL TiB2 | Diamond PCD |
| g-erormance o are VariMill I™ | n s ar | |||||||
| 4777 | 4–25 | 4 | Yes | X | ||||
| 4778 | 4–25 | 4 | Yes | X | ||||
| 4717 | 6–20 | 4 | Yes | X | ||||
| 4727 | 12–20 | 4 | Yes | X | ||||
| 47N7 ALTIN | 4–20 | 4 | Yes | X | ||||
| 47N7 TIALN | 4–20 | 4 | Yes | X | ||||
| 47N6 | 6–20 | 4 | Yes | X | ||||
| 47N0 | 5–20 | 4 | Yes | X | ||||
| VariMill II™ | ||||||||
| 577C | 4–25 | 5 | Yes | X | ||||
| 57NC | 6–25 | 5 | Yes | X | ||||
| VariMill II™ER | ||||||||
| 577E | 10–25 | 5 | Yes | X | ||||
| 57NE | 10–25 | 5 | Yes | X | ||||
| VariMill II™Long | ||||||||
| 5718 | 6–25 | 5 | No | X | ||||
| VariMill III™ER | ||||||||
| 77NE | 10–20 | 7 | Yes | X | ||||
| 771E/772E | 10–20 | 7 | Yes | X | ||||
| High-Performance Solid Carbide | End Mills • Roughing | |||||||
| DQ13 | 3–20 | 3 | Yes | X | ||||
| 49H6 | 8–20 | 3/4 | Yes | X | ||||
| 422152/422150 | 6–25 | 4 | Yes | X | ||||
| 4976 | 4–25 | 3/4/5 | Yes | X | ||||
| 422824/422820 | 6–25 | 4 | Yes | X | ||||
| 4U40 | 6–25 | 4/6 | Yes | X | ||||
| 4U70 | 6–25 | 4/6 | Yes | X | ||||
| 49N6 | 4–25 | 3/4/5 | Yes | X | ||||
| 4969 | 5–20 | 3/4 | Yes | X | ||||
| 422813/022813 | 6–25 | 3 | Yes | X | X | |||
| 422818 | 6–20 | 4 | Yes | X | X | |||
| 422846 | 6–25 | 4/6 | Yes | X | X | |||
| 4906 | 4–25 | 3/4/5 | Yes | X | X | |||
| 4966 | 5–25 | 3/4 | Yes | X | X |
